What Is Fire Resistant Silicone Sealant? Benefits and Standards

Fire resistant silicone sealant is a specialized elastomeric compound engineered to block the passage of flame, smoke, and toxic gases through construction joints and service penetrations. Unlike standard silicone products, this formulation incorporates flame-retardant fillers and high-thermal-stability silicone polymers that form a stable char layer when exposed to fire. It serves as a passive fire protection component in buildings, maintaining compartmentation integrity for rated durations of 1 to 4 hours. For MEP contractors and engineers managing pipe penetrations through fire-rated walls, selecting the right firestop sealant directly determines whether a project passes inspection.

Understanding Fire Resistant Silicone Sealant

What Sets It Apart from Standard Silicone?

Conventional silicone sealants cure into a flexible rubber that is resistant to movement and the elements. By adding inorganic fillers to the siloxane backbone, such as ammonium polyphosphate or aluminum trihydrate, a fire-rated version goes one step further. These additives cause char to develop when temperatures rise beyond 200°C, forming a ceramic-like barrier that physically prevents flames from spreading. This mechanism, rather than merely a temperature tolerance, is what gives the product a tested fire rating.

How the Siloxane Backbone Performs Under Fire

Compared to carbon-based connections found in acrylics or polyurethanes, the Si–O bond in silicone polymers is intrinsically more thermally stable. This indicates that the base material does not significantly provide fuel to a fire and resists ignite. Long-term exposure to fire causes the polymer to oxidize to silica instead of thick black smoke, which lowers the danger of inhalation and vision loss during evacuation—a proven benefit mentioned in fire safety engineering literature.

Fire Resistant vs. Fire Retardant: A Practical Distinction

There is a distinction between these two words. Over time, a fire resistant silicone sealant does not prevent fire from spreading through a joint; instead, it self-extinguishes and resists ignition. According to ASTM E814 or EN 1366-4, a fire resistant silicone sealant reaches a tested duration rating—typically 1, 2, or 3 hours—under a specified time-temperature curve. Only a fire resistant rating meets the regulatory need for projects subject to building code compliance and fire inspection sign-off.

Key Benefits of Fire Resistant Silicone Sealant

Choosing the right sealant for fire-rated assemblies is more than a material decision—it directly affects occupant safety, building code compliance, and long-term maintenance costs. The following core advantages explain why silicone-based firestop products consistently outperform alternatives in demanding environments.

Here are the primary performance advantages worth evaluating:

• Sustained compartmentation: The sealant maintains joint integrity for up to 4 hours under fire conditions, preventing the "chimney effect" in high-rise shafts where rapid vertical flame travel is a known hazard in fire investigation reports.
• Flexible joint movement: With a displacement capability of ±20% to ±50%, the cured material accommodates thermal expansion and building settlement without cracking, maintaining a continuous smoke-tight seal year after year.
• UV and weather stability: Unlike acrylic firestop products, which degrade and shrink under outdoor exposure, silicone chemistry resists UV radiation and moisture, making it the only practical option for exterior curtain wall fire joints.
• Low smoke toxicity: Halogen-free (LSZH) formulations produce minimal corrosive gases during combustion, protecting both occupants and sensitive electrical equipment in data centers and hospitals.
• Wide service temperature range: Effective from -50°C to +150°C under normal conditions, with intermittent resistance during fire events well beyond that range, covering climates from northern winters to industrial heat sources.

These performance characteristics translate directly into reduced rework costs, fewer failed inspections, and longer-term seal reliability across diverse project types.

Industry Standards and Certifications

Key Testing Standards to Reference

A sealant's fire performance is only as reliable as the test that supported it. In North America, penetration firestop testing is governed by ASTM E814 (UL 1479), which assesses both F-Rating (flame passage) and T-Rating (temperature increase on the unexposed side). While BS 476 Part 20 addresses fire resistance in the UK, EN 1366-4 governs linear joint seals throughout Europe and other markets. GB/T 9978 specifies the fire resistance testing procedure for building components used in Chinese construction.

Understanding Certification Documents

Project sign-off requires more than just a test certificate. A particular system number that specifies the precise installation parameters—sealant depth, joint width, backing material density, and substrate type—must be cited in the certificate. Applying a certified product outside of its tested configuration is a typical compliance issue that nullifies the rating. Before submitting for fire inspection, make sure the installation technique complies with the requirements of the test report.

Environmental and Safety Data Considerations

For any procurement procedure to be compliant, Safety Data Sheets (SDS) are required. Seek for sealants with LSZH certification and low-VOC standards. Sealant movement capability and application type are categorized by ISO 11600, which offers a baseline for determining the appropriate product grade. Building owners and general contractors are increasingly compelled to comply with environmental regulations as part of green building certification schemes like LEED and BREEAM.

How to Choose the Right Fire Resistant Silicone Sealant?

Matching the Product to the Application

The particular joint or penetration type is the first step in the choosing procedure for fire resistant silicone sealant. A sealant with a proven system that incorporates mineral wool backing at the appropriate density is needed for pipe and cable tray penetrations into fire-rated concrete or masonry walls. Weather resistance and UV stability become critical considerations for outside facade seams in curtain wall systems. Non-dusting and low-VOC qualities are important for interior construction joints in data center or healthcare settings.

Evaluating Supplier Credentials

Ask for the most recent test certificate listing rather than only a general data sheet when obtaining from a manufacturer. Verify the listing's status with the certifying organization. The UL Product iQ database allows for direct verification of UL listings. Verify whether the supplier can provide a complete set of documents, including SDS, test results, and installation guidelines, for project submission. On complicated projects, suppliers with internal technical assistance lower the possibility of specification mistakes.

Comparing Silicone Against Alternative Firestop Materials

Although intumescent acrylic sealants work well for plastic pipe penetrations and greatly expand when heated, they eventually shrink in high-movement joints due to moisture absorption. Although intumescent foam products are quick to install, their mobility is restricted. For metal penetrations, high-movement joints, and external applications where lifespan exceeds 20 years, fire-resistant silicone sealant is still the recommended option. Costly material substitutions during construction may be avoided by being aware of these trade-offs.

Application Guide and Best Practices

Surface Preparation and Priming

Before using any firestop sealant, carefully clean the substrate to get rid of any loose particles, grease, and dust. To obtain rated adhesion performance, porous materials like concrete or masonry would need a suitable primer. Before mass application starts, ASTM C794 peel adhesion testing on project-specific substrates, such as gypsum board, fire-rated glass, and anodized aluminum, verifies that adherence satisfies specifications.

Correct Application Technique

Install the sealant with the necessary supporting material already in place to the depth indicated in the test certificate, which is typically 6 to 10 mm minimum. To guaranty complete contact with the joint edges, tool the sealant surface throughout the open time. Under normal circumstances, surface drying takes 45 to 60 minutes, with a cure rate of around 3 mm per day. During the first cure, do not disrupt the joint.

Inspection and Long-Term Maintenance

As part of a building's passive fire protection maintenance program, fire-rated sealant joints must be inspected on a regular basis. Examine for displacement, cracking, or adhesion loss brought on by structure movement or remodeling. The original tested system specification must be restored in the event of a fire-rated joint rupture. Facility managers and insurance assessors are increasingly requiring that all inspections and repairs be documented for the building's fire prevention log.

Conclusion

By preserving fire compartmentation at its most susceptible locations—construction joints and service penetrations—fire resistant silicone sealant saves lives. It is the ideal material for the greatest variety of firestop applications due to its weather resistance, mobility, and thermal stability. Every complying project requires choosing a product that is supported by legitimate test certifications, matched to the appropriate installation system, and provided with comprehensive documentation. Rework expenses, liability exposure, and unsuccessful inspections may all be avoided by starting with a perfect specification.

FAQ

What temperature can fire resistant silicone sealant withstand?

Under normal service conditions, a quality firestop silicone sealant operates from -50°C to +150°C. During a fire event, the char formation mechanism provides protection well beyond this range for the rated duration—up to 4 hours depending on joint configuration and backing material, as defined in the applicable test certificate.

Can fire resistant sealant be used for exterior curtain wall joints?

Yes. Silicone-based firestop sealants are the preferred option for exterior applications because they resist UV degradation, moisture absorption, and thermal cycling. Acrylic alternatives are not suitable for exposed exterior joints due to shrinkage and water sensitivity.

How long does fire resistant silicone sealant last?

When installed correctly and maintained, silicone firestop sealants retain performance for 20 or more years. The key variables are correct installation depth, substrate adhesion, and protection from physical damage during building use.

Does the sealant alone provide the fire rating?

No. The fire rating belongs to the complete installed system, not the sealant in isolation. The certificate specifies the sealant depth, backing material type and density, joint width, and substrate. Deviating from the tested configuration invalidates the rating.

What packaging formats are available?

Our product is available in 300 ml and 600 ml volumes, supplied in either sausage or cartridge format, making it compatible with standard application guns used on construction sites.

Partner with Jiaobao for Your Next Firestop Project

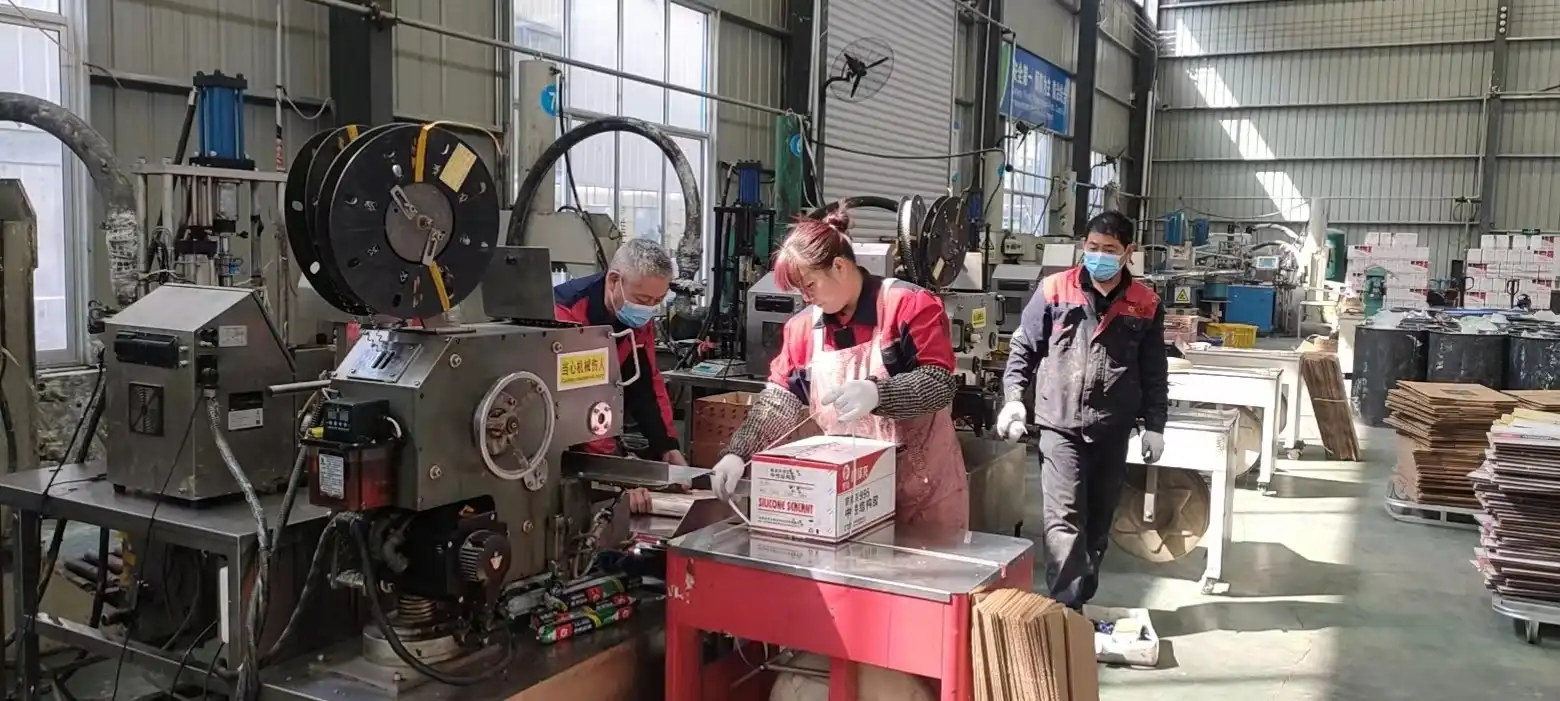

Jiaobao has manufactured silicone sealants since 2013, with over 13 years of production experience and ISO and CE certifications supporting export to global markets. Our fire resistant silicone sealant manufacturer capabilities include OEM and ODM production, a 1–2 week lead time, and flexible sea or land shipping. Available in white, black, grey, or custom colors in 300 ml and 600 ml formats, each batch carries full technical documentation for project submission. Contact our team at dorashen@cnjiaobao.com to request samples or bulk pricing.

References

1. ASTM International. ASTM E814: Standard Test Method for Fire Tests of Penetration Firestop Systems. ASTM International, 2023.

2. Underwriters Laboratories. UL 2079: Tests for Fire Resistance of Building Joint Systems. UL Standards & Engagement, 2019.

3. British Standards Institution. BS 476-20: Fire Tests on Building Materials and Structures — Method for Determination of the Fire Resistance of Elements of Construction. BSI, 1987.

4. International Organization for Standardization. ISO 11600: Building Construction — Jointing Products — Classification and Requirements for Sealants. ISO, 2002.

5. Beyler, C. L. "Fire Hazard Calculations for Large, Open Hydrocarbon Fires." SFPE Handbook of Fire Protection Engineering, 5th ed., Springer, 2016.

6. Gottuk, D. T., and Lattimer, B. Y. "Effect of Combustion Conditions on Species Production." SFPE Handbook of Fire Protection Engineering, 5th ed., Springer, 2016.
