Which PU Automotive Glass Adhesive Sealant Is Best for OEM Use Today?

When securing windshields and automotive glass in production environments, choosing the right adhesive becomes a critical decision affecting both vehicle safety and assembly line efficiency. The best PU Automotive Glass Adhesive Sealant for OEM applications today combines reliable bonding strength with fast curing times, batch consistency, and full compliance with automotive quality standards like IATF 16949.

Products built on silane-modified polyether resin technology deliver tensile strength exceeding 2.2 MPa while maintaining 400% elongation at break—essential properties that ensure structural integrity and flexibility under real-world driving conditions. Manufacturers prioritizing both performance and regulatory compliance gain the most value from adhesives that offer complete PPAP documentation and proven production-line compatibility.

Understanding PU Automotive Glass Adhesive Sealants: Composition and Performance

Advanced chemical formulas are used to make polyurethane adhesive sealants for automotive glass that are strong, flexible, and resistant to the environment. The main part of these goods is usually silane-modified polyether resins, which harden when they come into contact with moisture in the air. Unlike traditional isocyanate-based formulas, silane-modified systems get rid of harmful chemicals while providing odorless application, which is a big plus in production facilities that are closed off.

Chemical Structure and Bonding Mechanism

Because of how their molecules are structured, these adhesives can stick strongly to more than one surface at the same time. Glass, metal frames that have been painted, and areas that have been primed all stick together well without the need for separate glue systems. The hardening process makes a three-dimensional network of polymers that can handle dynamic stress and still keep the seal's integrity. Because of this chemical structure, modern formulations can achieve such high elongation rates—the polymer chains can stretch a lot before they break.

Performance Under Operational Stress

Temperature changes between -40°C and 90°C, steady movements from the road, and long-term UV exposure are all problems that sealants have to deal with in automotive settings. Good polyurethane glass adhesives keep their mechanical properties throughout this whole range.

Premium formulations have a solid content of about 99%, which means they don't shrink much when they cure. This keeps gaps from forming, which could affect their ability to seal water or provide structural support. Shore A hardness values around 45 are the best balance between being firm enough to support the glass panel and being flexible enough to allow for chassis flexing when turning or when the road is rough.

Safety and Regulatory Considerations

Windshields are very important for safety, especially in front-end accidents where they help the passenger airbag go off. Adhesives must meet strict performance standards for this safety-critical job. Tensile strengths of at least 2.2 MPa make sure that the glass stays together even when it is hit. With a 400% extension capacity, the link line can take in energy during crashes without breaking all at once. In both North America and Europe, these performance qualities are closely linked to meeting the requirements of safety rules for cars.

PU vs Other Automotive Glass Adhesive Sealants: A Rational Comparison

Before you can choose between different adhesive technologies, you need to know how they work and what they can be used for. There are a few different ways to bond automotive glass, but each chemistry has its own pros and cons that make it less or more suitable for OEM production environments.

Polyurethane Performance Profile

The mechanical strength of polyurethane systems is very high, and they are also very flexible. The cure speed of about 3.5 mm per day makes production schedules reliable, so workers can confidently plan safe drive-away times. The material keeps its strong bonds even when the temperature changes a lot. It doesn't break easily in cold weather or too easily in heat. Long-lasting resilience over the life of the car is ensured by chemical resistance to automobile fluids, cleaning agents, and environmental pollutants.

Silicone-Based Alternatives

Traditional silicone sealants stick better at room temperature and stick faster at first. But because they aren't as strong when pulled apart as polyurethane systems, they can't help make the structure of a car more rigid. Silicone adhesives usually have tensile strengths of about 1.5 MPa, which is good for sealing but not good enough for current one-piece designs where the windshield makes the frame stiffer overall. Silicone has a lower modulus, which means it doesn't absorb vibrations as well. This could change how noise and harshness are perceived.

Specialized Chemistry Options

Although epoxy adhesives dry quickly and are very strong, they are not flexible enough to be used in automobile uses. The rigid bond line can't handle differences in thermal expansion or chassis flexing, which can cause stress to build up and the bond to fail. Acrylic sealants are good at filling gaps, but they need to be carefully prepared for use and put on in controlled circumstances.

PU Automotive Glass Adhesive Sealant offers a balanced alternative with superior elasticity and weather resistance, yet it requires longer curing times and strict moisture control during application. UV-curing systems make processing very fast, but they need expensive curing tools and can't cure properly in places that are in the shade or under opaque clay frits.

Polyurethane formulas are always the best choice for OEM production that needs to be done in large quantities. Automotive manufacturers need a balance of strength, flexibility, processing properties, and cost-effectiveness, and these materials meet that need. The chemistry works reliably in a range of production conditions and doesn't need any special tools or complicated process controls.

How to Choose the Best PU Automotive Glass Adhesive Sealant for OEM Use

A lot of technical and business factors need to be taken into account when choosing the right adhesive for putting together auto glass. When approving new suppliers, production managers and quality engineers need to think about both the needs of the current application and the security of the supply chain in the long run.

Technical Performance Criteria

Metrics that measure the strength of bonds are used to make selection decisions. Check that the tensile strength is higher than 2.2 MPa and the elongation at break is at least 400% when tested according to established standards. Curing times must match the cycle times of the production line. Tack-free times of 15 to 40 minutes, based on seasonal temperature changes, allow for acceptable handling without fixtures. Check the sagging resistance specifications to make sure that vertical application keeps the shape of the beads without sagging before they fully cure.

Field problems can be avoided by making sure the device works well across the expected temperature range. Adhesives need to stay flexible at -40°C so they don't break easily in the winter, and they need to keep their solid features at 90°C in the summer. UV resistance makes sure that any sides of the beads that are exposed to sunshine won't break down over time, so they keep their good looks and ability to keep out the weather.

Supplier Quality Systems

Quality management must be very strict in automotive supply chains. Suppliers with IATF 16949 certification show they can meet requirements specific to the car industry that go beyond ISO 9001 standards. This license shows that the production part approval procedures (PPAP), advanced product quality planning (APQP), and failure mode effects analysis (FMEA) have been followed for a long time. These are all very important for companies that supply parts for cars.

Before doing trial installations, you should ask for full PPAP documentation packages. There should be full performance specs on the technical data sheets, process flow diagrams, control plans, and measurement system analysis reports in these packages. Suppliers who can't provide all the necessary paperwork don't have the quality facilities to support car production.

Batch Consistency and Supply Assurance

Variations in materials can't be handled by production lines. Check the statistical process control data from the seller to make sure that the stability between batches. Look for proof of tracking defects in parts-per-million (PPM) and efforts to keep getting better. Ask about strategies for getting raw materials and systems for keeping track of goods that will keep supplies going even when the market is down.

The schedule for production is directly affected by how reliable deliveries are. Suppliers should keep extra items in stock as a safety measure, offer fast shipping choices for pressing needs, and make it easy to keep track of orders. With production lead times of one to two weeks, it's easy to keep track of inventory without having to pay too much for storage. Transportation risks are lower when goods are close together or when shipping partnerships are already in place. This also lets companies respond more quickly to changes in production numbers.

Application Best Practices: Ensuring Optimal PU Adhesive Sealant Performance

To get the best performance out of good adhesives, you need to follow strict application steps. Even the best goods won't work as well if they are used incorrectly or in the wrong circumstances. PU Automotive Glass Adhesive Sealant is no exception, as its curing and bonding properties depend heavily on proper surface preparation, temperature, and humidity control. Setting up and following standard processes saves both the quality of the product and the safety of the workers.

Surface Preparation Requirements

In order for ties to last, surfaces must be clean. Before applying, clean the surface of any dust, oils, release agents, and old glue remains. Wipe in one direction with lint-free cloths that have been wet with approved cleaning agents. Moving the cloths around in circles can spread dirt and grime. Let all of the solvent evaporate before applying the adhesive. Solvents that stay in the adhesive weaken the bond because they interfere with the curing process.

Primer is often needed to make sure that paint will stick to painted surfaces and metal that hasn't been painted yet. Before applying the glue, make sure you follow the manufacturer's instructions for choosing the primer, how to apply it, and how long the flash-off time should be. Primers make a chemical link between different materials and fill in holes on surfaces to keep them from sticking together.

Dispensing Techniques

Keep the shape of the beads the same throughout the application. To get the right bead dimensions—usually triangular cross-sections that make sure the right amount of touch with both glass and body surfaces—use regulated dispensing tools with the right nozzle sizes. When it comes to accuracy, automated dispensing methods are better than human application. This is especially important in high-volume production settings.

Control the speed of the coating to keep air from getting trapped in the bead. When air gets trapped, it leaves gaps that make the contact area smaller and make sealing less effective. Temperature and humidity in the air affect how thick a substance is and how fast it cures, so change the dispensing parameters with the seasons to get consistent results. Before they are used, material sausages or capsules should be left at room temperature to make sure they move properly.

Curing and Quality Verification

Follow the minimum curing times before putting assemblies under stress or testing them. Depending on the conditions, surface tack forms in 15 to 40 minutes. The full cure depth happens at a rate of about 3.5 mm per day. Plan the production steps so that there is enough time for them to fix before they are tested for leaks, transported, or put together again. If you hurry through this process, the bond could load too soon and fail.

Do quality checks on a regular basis to find problems with applications before they spread to other units. A visual check makes sure that the beads are in the right place and that there are no gaps or voids. Adhesion testing on witness panels or production samples makes sure that the conditions for preparing the surface and curing are still acceptable. Write down all the process factors and test results so that they can be tracked and improvements can be made all the time.

Workers are protected from possible harm by safety gear. Even though current formulations reduce volatile emissions, make sure that places where they are used have enough air flow. Provide the right safety gear for each person, like gloves and safety glasses. Materials should be kept in climate-controlled areas, away from sources of wetness that could cause them to cure too quickly in packages that haven't been opened.

Procurement Guide: Sourcing PU Automotive Glass Adhesive Sealants for OEM Needs

To build a reliable supply chain for safety-critical materials, you need to carefully evaluate suppliers and make sure they understand your needs. When choosing adhesive suppliers, people who work in procurement have to weigh technical performance, business terms, and the reliability of the supply chain.

Supplier Qualification Process

Start by doing thorough assessments of your suppliers to make sure they can meet your needs in terms of quality control and manufacturing. See if you are still in line with IATF 16949 by looking at your latest audit results and IATF 16949 certification status. If you can, go to production sites to see how things are made, quality control labs, and warehouse management systems in action. These on-site reviews show skills that written descriptions can't fully show.

Ask current automotive clients for customer references, preferably ones that have similar production volumes and quality standards. Get in touch with these sources to find out how well they deliver, how quickly they help with technology issues, and how well they solve problems. Suppliers with a history of working with car customers have shown they can handle the demands of this industry.

Commercial Terms and Flexibility

Talk about pricing models that let you know what the costs will be ahead of time while still giving sellers a chance to make a good profit. Extremely low prices often mean that quality has been sacrificed or that the business model can't last, which raises the risk in the supply chain. PU Automotive Glass Adhesive Sealant is a good example where this principle applies directly—if its price seems too low, question the formulation and long-term performance. Find out what the minimum order quantities are and decide if they fit with how you manage your inventory and how much you make.

When standard formulations don't exactly meet your needs, the ability to customize them is very useful. If a supplier offers OEM and ODM services, they can change drying speeds, viscosity profiles, or color choices to make sure they work best in your application. When working with special types of glass, coating systems, or odd environmental conditions, this freedom comes in very handy.

Technical Support and Documentation

Superior suppliers are different from vendors of common materials because they offer full expert help. When looking for providers, make sure they offer application engineering help, fixing advice, and training programs for production staff. Having access to technical experts who know how cars are made speeds up the process of fixing problems when they happen.

Full documentation packages help with both the initial qualification process and the ongoing control of production. Suppliers should give certificates of analysis that are specific to each batch, safety data sheets that meet current legal requirements, and technical data sheets that give full details on how the product will work. Guaranties of after-sales service, such as replacing faulty products within their shelf lifes, protect companies from losing money due to bad materials.

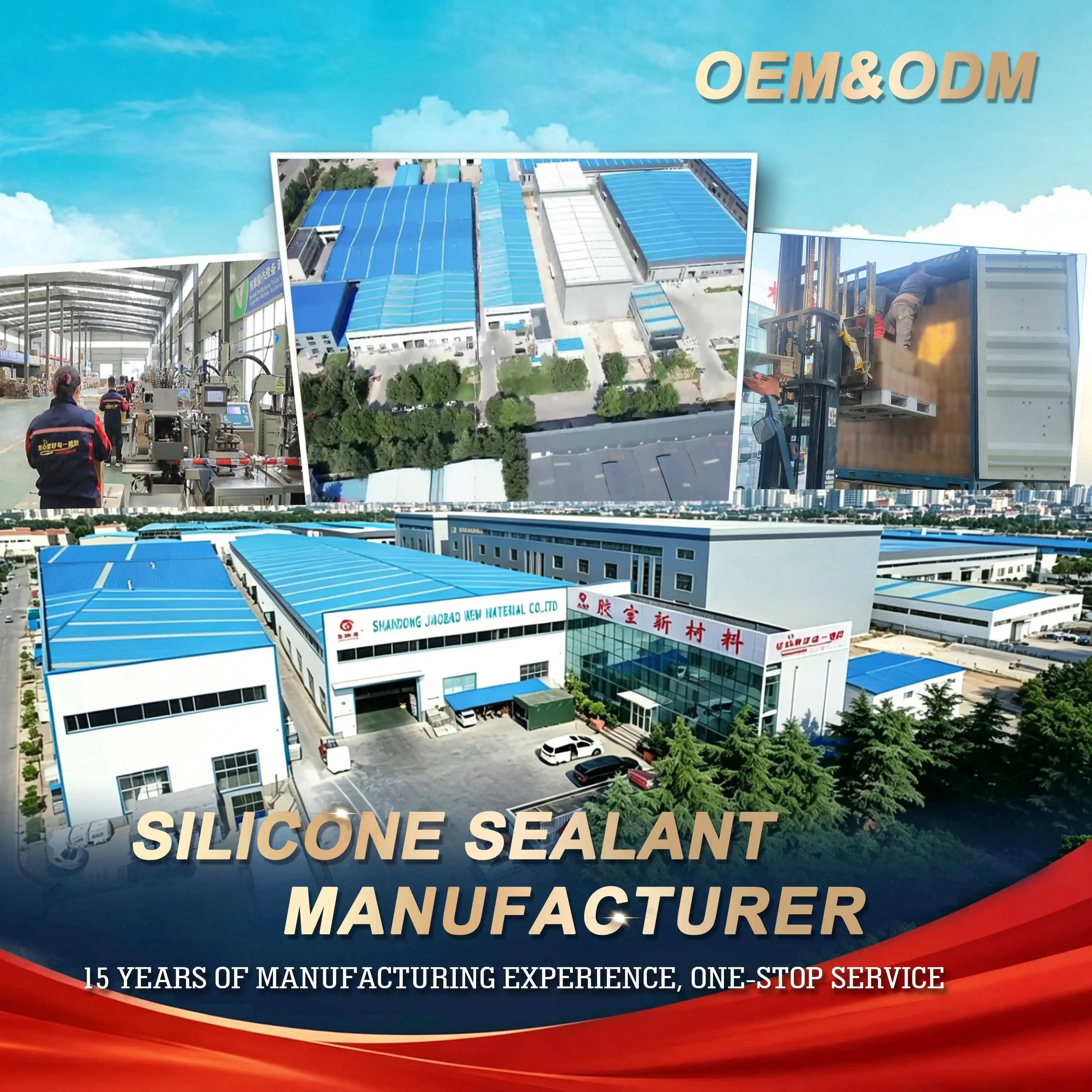

Shandong Jiaobao New Material Co., Ltd. is a good example of the kind of source that automakers like. Since its founding in 2013, Jiaobao has been making things for more than 13 years and has developed mature production processes and stable quality control systems that are specifically made for automotive uses.

The business keeps its ISO certification up to date and offers full PPAP paperwork to help customers meet licensing requirements. Flexible shipping choices by sea or land, along with production lead times of one to two weeks, make supply chain management work well. The fact that the company is willing to return or replace faulty products within the shelf life shows that they trust their products and are dedicated to providing excellent customer service.

Conclusion

It's important to find the right polyurethane glass glue for OEM car uses by weighing technical performance, source dependability, and cost. Products with a tensile strength of 2.2 MPa and a stretch of 400%, along with IATF 16949 quality systems and full PPAP paperwork, make production safe and effective. When it comes to making cars today, silane-modified polyether resin formulations have the best mix of strength, flexibility, and useful properties.

Disciplined application processes, proper surface preparation, and enough curing time are all important for a successful execution, and choosing a compatible PU Automotive Glass Adhesive Sealant that matches these process requirements is a critical part of that success. Partnering with experienced providers who know what cars need and can give full technical help lowers risk and raises the total cost of ownership over the whole supply relationship.

FAQ

What curing time should OEM production lines expect?

Surface tack usually forms in 15 to 40 minutes at room temperature and humidity, which lets you handle it carefully. But the full cure depth moves forward at a rate of about 3.5 mm per day. The safe drive-away time for passenger vehicles varies depending on the size of the bead and the weather, but it's usually between 1 and 4 hours. Seasonal changes should be taken into account when planning production, since winter weather could make drying times longer. To keep the bond from getting too stressed too soon, you should always check the cure state of assemblies before putting them under full working loads or doing leak tests.

How does temperature affect adhesive performance?

Good polyurethane glass sealants keep working at temperatures ranging from -40°C to 90°C. Cold temperatures slow down the curing process and make the material stiffer for a short time. Heat, on the other hand, speeds up the curing process and lowers the thickness during application. The finished glue stays flexible in very cold temperatures, so it doesn't break easily. On the other hand, high temperatures don't soften it too much or break down the bond. The temperature of the application during installation affects how easy it is to dispense and how quickly the initial tack develops. For best processing results, keep both the material and the base above 5°C.

Why choose polyurethane over silicone sealants?

Polyurethane systems have a higher tensile strength (about 2.2 MPa compared to 1.5 MPa for silicones), which makes them better at making vehicles stiff. Polyurethane's higher modulus makes it better at damping vibrations, which lowers noise and harshness. Polyurethane adhesives are better at not tearing and last longer under cycling loads. It takes less time for silicone to cure at first, but polyurethane is better for safety-critical windshield bonding in current one-piece vehicles because the glass makes the frame stiffer.

Partner with Jiaobao for Your Automotive Adhesive Requirements

Quality adhesives are the building blocks of safe and effective car glass assembly. Shandong Jiaobao New Material Co., Ltd. offers tried-and-true polyurethane glass adhesive solutions and has been in business for over 13 years, helping automotive suppliers around the world. With ISO approval and full PPAP paperwork to support your buyer evaluation processes, you can be sure that our goods meet international standards.

As an experienced PU Automotive Glass Adhesive Sealant manufacturer, we can get your order to you in just one to two weeks, and we offer reliable after-sales service, such as free replacements for any quality problems that happen during the product's shelf life. Send an email to dorashen@cnjiaobao.com to talk to our technical team about your unique application needs and to ask for product samples that you can test in your production setting.

References

1. Society of Automotive Engineers. "Performance Requirements for Automotive Adhesive Bonding Systems." SAE International Standards Publication, 2022.

2. International Automotive Task Force. "Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations." IATF 16949:2016 Standard Documentation, 2021.

3. Zhang, H., and Chen, M. "Advances in Polyurethane Adhesive Technology for Automotive Glass Installation." Journal of Applied Polymer Science, vol. 139, no. 8, 2023.

4. American Society for Testing and Materials. "Standard Test Methods for Strength Properties of Adhesives in Shear by Tension Loading." ASTM D4587-20 Technical Report, 2020.

5. Roberts, T., and Williams, K. "Structural Adhesives in Modern Vehicle Design: Performance and Safety Considerations." Automotive Engineering International, vol. 58, no. 3, 2023.

6. European Automobile Manufacturers Association. "Technical Guidelines for Direct Glazing Systems in Passenger Vehicles." ACEA Technical Paper Series, 2022.
