What Surfaces Work with GP Silicone Sealant for Glass and Aluminum?

GP silicone sealant for glass and aluminum bonds well to float glass, tempered glass, laminated glass, anodised aluminium, powder-coated aluminium profiles, ceramic tiles, stone, and rigid plastics. This one-component, moisture-cured RTV silicone forms a persistently flexible elastomeric barrier that accommodates thermal shifts between glass and aluminium, two materials with very different thermal expansion coefficients. Knowing which surfaces were compatible before specifying this good is the first step to consistent sealing and zero-defect production.

Understanding GP Silicone Sealant and Its Compatibility with Surfaces

You can see that not every base works with the same silicone seal. One-part RTV silicone like GP silicone cures with acetoxyl, so it sticks together when it gets wet. The rubber that was made can stretch more than 300% and stick to smooth surfaces. It can hold its shape up to 1.5 MPa. This takes care of the stress that window frames and glass curtain walls face when the weather changes.

Compatible Glass Surfaces

To use, make sure the surface is clean and dry. It works well on float glass, heat-strengthened glass, toughened glass, and laminated (PVB) glass. Being 18 Shore A hard means that the sealant is soft enough to stay on the glass face even when it shakes a little. Molecular sieve gaps and butyl hot-melt secondary seals should not be used with insulating glass (IG) units. This needs to be checked. The standard way to check if two IG assemblies are compatible is to use Jiaobao's recipe.

Compatible Aluminum Surfaces

When you anodize or powder-coat GP rubber, it sticks well to aluminum forms that have already been put together. On the other hand, mill-finish (untreated) aluminum can rust because the acetic acid that is released during the acetoxy fix can react with metal that isn't coated. If your aluminum extrusion has a mill finish or is sensitive to heat, you should use a silicone that cures slowly. The two-cloth IPA wipe method should always be used first to get rid of cutting grease and surface rust on metal.

Other Compatible Substrates

You can use this glue on more than just metal and glass. Other things that it sticks to are ceramic tiles, natural stone, concrete, UPVC window frames, and steel that has seen better days. With this sealant, metal tubes need to be attached to concrete or brick walls around the edges of storefronts and walls. Being able to stick to different surfaces is helpful.

Application Methods for GP Silicone Sealant on Glass and Aluminum Surfaces

If you put on a seal the right way, it could last years or just a few months. Getting the surface ready is the most important thing that can change how well the glue works.

Surface Preparation Protocol

Use the two-cloth method to clean the glass and metal surfaces that touch for GP silicone sealant for glass and aluminum. First, wipe on with a cloth that has been wet with a solvent (isopropyl alcohol works well). Then, wipe off with a dry, clean cloth right away, before the solvent evaporates. This stops the germs from growing and gets rid of them. There is no need for a good binder if there is oil, silicone release agent, or metal swarf on the surface. The glue will not stick.

Application and Tooling

Put the 300-ml cartridge or 600-ml sausage pack in the right gun. The best times to use are when it's between 5°C and 40°C and less than 75% humidity. Make sure the nozzle fits the joint well and keep pressure on it so the bead stays put. Within three to five minutes of putting it on, you should tool it. The sealant is pressed down against both bases with tools, and any holes in the surface that let water in are plugged.

Curing Time and Quality Verification

To remove the tape, the lab must be cool and dry (23°C, 50% RH). This should only take 15 minutes. Most of the time, the full mechanical fix takes 24 hours when the joint is weak. It could take up to seventy-two hours for large joints. Until it's fully fixed, don't put too much weight on it or let it stay wet for too long. Put something over your finger and press it against a test bead to make sure the surface is dry all the way through. There shouldn't be any movement after a clean release. This means that the surface is completely dry.

Comparing GP Silicone Sealant with Alternative Sealants for Glass and Aluminum

The people who work in procurement often say that GP silicone is like polyurethane (PU) and acrylic. You won't have to make expensive changes to the material if you know the pros and cons of each type of science.

And because they are water-based, acrylic seals look good on wood inside. If you want to seal the edges of glass to aluminum in fenestration, they don't work very well because they shrink when they dry, can't handle the normal temperature changes in metal frames, and break down quickly in UV light. Polyurethane seals can be sprayed on and stick better to porous surfaces at first. But they turn yellow after being in UV light for a long time and soak up water over time. This weakens the bond at glass contacts that aren't porous.

When GP silicone sealant for glass and aluminum is used on windows, it does something different. When you buy things to make things, these are the main changes in your skill that matter:- GP rubber stays clear and bendable even after years of being outside because it blocks UV and ozone. The same things can cause acrylic and PU covers to chalk or break.

Stable from -50°C to +150°C, which is warmer than the temperature range most PU products work in (20°C to +80°C).To stick to a surface that doesn't have pores: Most of the time, silicone science can stick to smooth metal and glass without a primer. PU needs a special primer if the surface doesn't have any holes in it.

GP silicone at Shore A 18 can handle heat and joint movement without getting too stressed out and peeling. Tougher sealants move to where they touch the glue and finally break when weight is put on them. It takes less work to fix mistakes and gets better quality on the first try on production lines because of these differences in performance. The people in charge of production and quality control need to see this before they agree to make a big change.

Environmental and Performance Specifications for GP Silicone Sealant

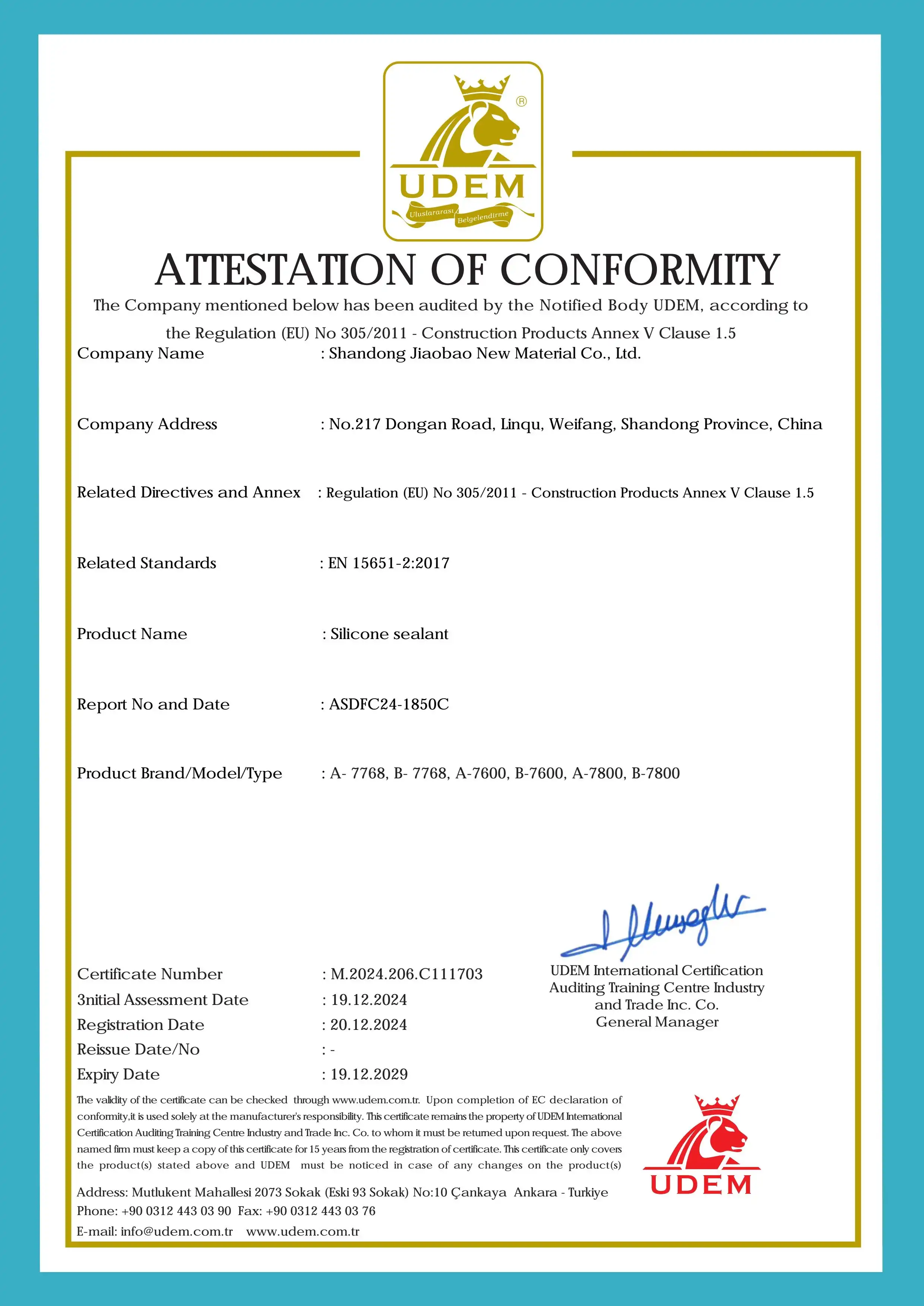

Both ISO and CE have approved Jiaobo's GP silicone sealant. Being chemically and mechanically sound means it can be sent to limited markets in Africa, the Middle East, and other places. This item meets the exact performance standards set by ASTM C920 Type S Grade NS Class 25 because it keeps the weather out.

Temperature and Weather Performance

The range of -50°C to +150°C makes it good for both deserts and cold storage. It's not possible for the glue to crack or flow when it's hot or cold. There is no need to add anything else because the base material is already resistant to UV and ozone.

Mechanical Flexibility and Longevity

That's how much the bead can be stretched before it breaks. It stays together even when stretched over 300%. When the temperature changes, the spacer bar, the butyl primary seal, and the secondary silicone must all be able to move together without putting stress on the contact between the glass and sealer. This is very important for glass units that keep heat in.

Batch Consistency and QC Parameters

To make a lot of money on Jiaobao, GP silicone sealant for glass and aluminum takes one to two weeks. Things like tack-free time difference, extrusion rate, shrinking (target <5%), and peel bond mode are checked for quality control on a frequent basis. Aluminum that has been anodized or powder-coated must fail with cohesive failure. When you buy from people who don't have written process rules, the line can stop because of parameter shift. When speed stays the same from batch to batch, this doesn't happen as often.

Procurement Guide: How to Source and Purchase GP Silicone Sealant

If a glass company buys between 60 and 200 metric tons a year, they have more control over the price and formula if they buy from a confirmed maker instead of a distributor.

Sourcing Channels and Sample Requests

Jiaobao gives out samples of their goods when people ask for them. When you buy something, you usually go through a technical review, an adhesion test on customer surfaces, a test production run, and batch approval. Send an email to dorashen@cnjiaobao.com to ask for samples. There are goods and scientific information about the company on shandongjiaobao.com.

Packaging, Volume, and OEM Options

You can get 300 ml cartridges and 600 ml sausage packs in standard white, black, gray, or any other color you want. You can use it for a year after it was made. You can get OEM labels and make changes to the formula, like changing the color, thickness, or how long it takes to dry, as long as you have an NDA. When you need special formulas, you can talk about the lowest amount you need to order based on the yearly amount.

Logistics and After-Sales Terms

People in Africa or the Middle East can send something by land or sea. You can get your money back or a new item from Jiaobao if there are quality problems during the shelf life. Key accounts can get on-site help from experts to fix problems with apps.

Conclusion

As long as the surfaces are clean and the right cure chemistry is used, GP silicone sealant for glass and aluminum can be used on powder-coated aluminum, anodized aluminum, float glass, tempered glass, laminated glass, ceramic, and stone. Most window and curtain wall jobs can be done with GP silicone that has been cured with acetoxy. Set the conditions, prepare the surface, and plan the joints.

This is the most important three things that affect how well someone does on the field. ISO and CE have both accepted the method that Jiaobao has used for 13 years. To meet the standards that people who make tools for handling glass need for bonding strength and batch stability, it is made.

FAQ

Can acetoxy GP silicone be used on untreated (mill-finish) aluminum?

Acetoxy silicone releases acetic acid during cure. This acid can corrode bare, untreated aluminum over time. For mill-finish aluminum profiles, a neutral-cure silicone is the correct specification. Anodized and powder-coated aluminum are generally safe with acetoxy GP silicone.

How long does GP silicone take to fully cure?

Tack-free time is 15 minutes at 23°C and 50% relative humidity. Full cure through a standard joint depth takes 24 to 72 hours depending on joint geometry and ambient conditions. Higher humidity accelerates cure; very dry or cold conditions slow it.

Is GP silicone compatible with insulating glass unit components?

Yes, when the formulation is verified against the specific butyl primary seal and molecular sieve spacer used in the IG unit. Jiaobao's GP silicone passes standard IG compatibility screening. Request a compatibility test report when placing your sample order.

Can this sealant be painted over after curing?

No. Cured silicone is non-paintable due to its low surface energy. If a painted finish over the sealant joint is required, a hybrid polymer sealant or modified silicone should be specified instead.

Partner with Jiaobao for Your Next Glazing Project

Jiaobao has worked for companies that deal with glass and build metal walls for more than 13 years. We make GP silicone sealant for glass and aluminum right here in our own factory. These recipes are approved by ISO and CE, and we can make them in any color or thickness you need. Lead times are one to two weeks, and if there are quality problems during the shelf life, we'll fix them for free. To get a scientific sample or a price quote for buying in bulk, email us at dorashen@cnjiaobao.com or visit shandongjiaobao.com. Then, have your quality team test it on your own surfaces before you sign a supply deal.

References

1. ASTM International. ASTM C920: Standard Specification for Elastomeric Joint Sealants. ASTM International, 2022.

2. ISO. ISO 11600: Building Construction — Jointing Products — Classification and Requirements for Sealants. International Organization for Standardization, 2002.

3. Petrie, Edward M. Handbook of Adhesives and Sealants. McGraw-Hill, 2007.

4. Wolf, Andreas T. Durability of Building Sealants. RILEM Publications, 1999.

5. American Architectural Manufacturers Association (AAMA). AAMA 800: Voluntary Specifications and Test Methods for Sealants. AAMA, 2020.

6. ASTM International. ASTM C794: Standard Test Method for Adhesion-in-Peel of Elastomeric Joint Sealants. ASTM International, 2018.
