PU Windshield Sealant vs Silicone: Which Bonds Auto Glass Better?

When choosing between polyurethane and silicone for windshield bonding, PU Windshield Auto Glass Sealant delivers superior structural adhesion and safety performance. Polyurethane forms a chemical bond that integrates the windshield into the vehicle's structural integrity, providing critical support during collisions and airbag deployment.

Silicone sealants, while offering excellent flexibility and weather resistance, typically lack the tensile strength required for modern automotive safety standards. For auto glass replacement chains managing multiple locations, polyurethane ensures consistent installation quality, meets crashworthiness regulations, and provides the mechanical strength necessary to prevent windshield detachment under stress.

Understanding Windshield Sealants: PU vs Silicone

The science behind these two types of sealants decides whether they are good for cars. Polyurethane-based adhesives harden when they come in contact with water. They form strong bonds with painted surfaces, metal frames, and glass surfaces. This chemical cross-linking process makes an interface that is both hard and flexible. This helps the vehicle's torsional stiffness and makes up about 30% of the roof's strength in current designs.

Different polydimethylsiloxane chains give silicone sealants their great flexibility, which is how they harden. Even though this flexibility helps with heat expansion, silicone usually has lower fracture strength than polyurethane mixtures. Purchasing professionals can better match product specifications to operational needs when they understand these basic differences.

Chemical Composition and Bonding Mechanisms

Isocyanate groups in polyurethane sealants react with water to make urethane linkages. This reaction makes a three-dimensional network of polymers that physically connect to the surfaces of the substrates. The bond that was made can handle a lot of stress, which makes it perfect for structural glass jobs where the windshield needs to stay in place during frontal hits.

Typical Automotive Applications

Polyurethane is used a lot in modern auto manufacturing for installing stationary glass like windshields, backlites, and quarter glass. Silicone works well in closing jobs that aren't structural, like weatherstripping channels, window edge seals, and secondary moisture barriers, where flexibility is more important than strength.

Performance Under Operational Stress

When the vehicle is running, the windshield bonds are constantly vibrating, the temperature changes, and the chassis bends, which puts mechanical stress on the bonds. In these conditions, high-modulus polyurethane formulations stay intact, stopping the movement of glass and water that threatens passenger safety and comfort. Good polyurethane products can stretch by 400%, which means that the seal can bend when the temperature changes without breaking or coming away from the surfaces it is bonded to.

Comparative Analysis of PU Sealant vs Silicone Sealant

Metrics that measure performance show that these adhesive technologies are very different from one another. Several things affect the long-term success of products that will be used across the whole chain.

Mechanical Strength and Durability

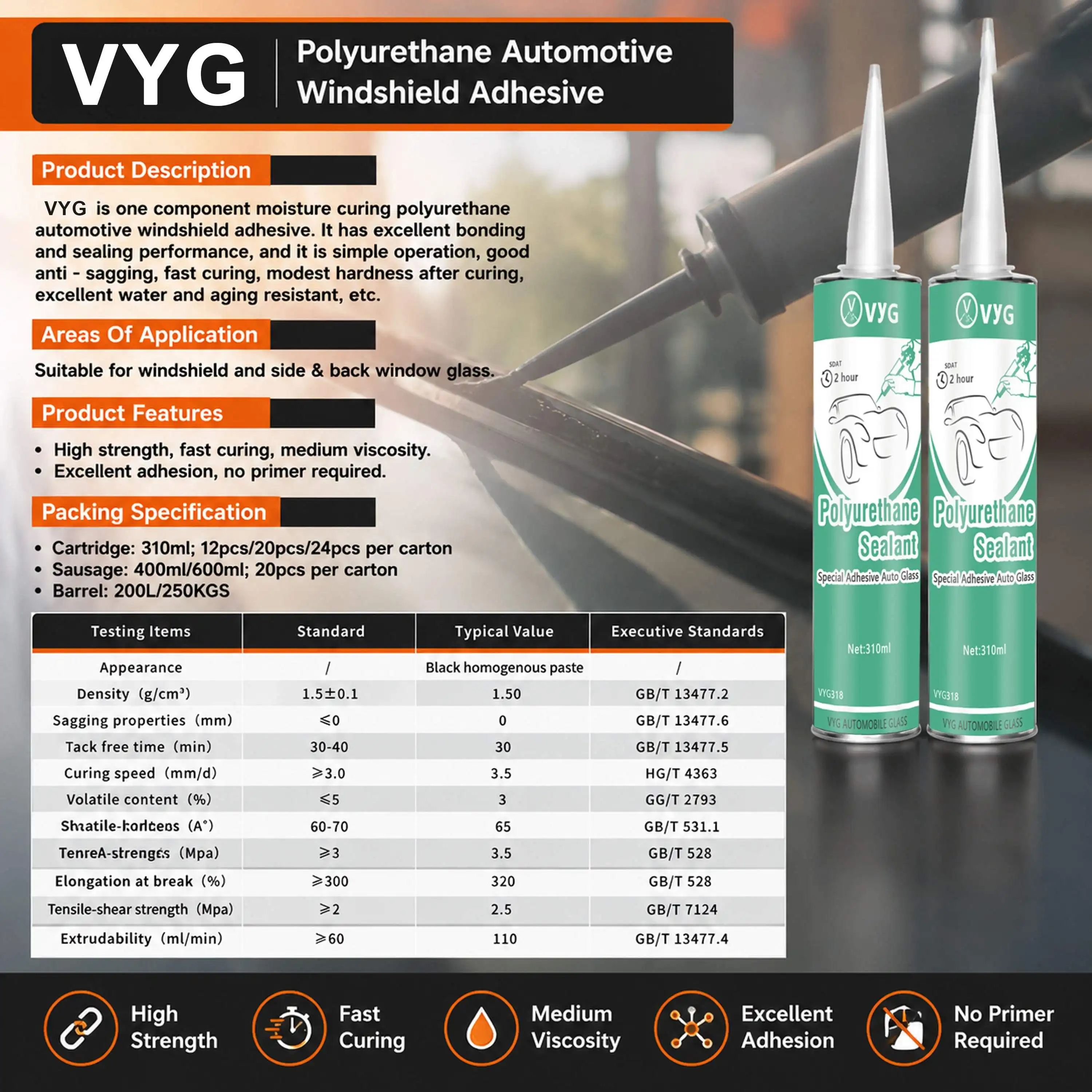

Depending on the recipe, polyurethane adhesives can have Shore A hardness scores between 45 and 70 and tensile forces greater than 2.2 MPa. This mechanical ability makes sure that the glass stays in place even when the car hits something. The bond stays strong at temperatures ranging from -40°C to +90°C, which is important for operations that take place in a variety of climates.

Silicone coatings usually have a lower tensile strength but a higher stretch strength, which can go over 600%. Because it is so flexible, silicone works well in situations where it needs to be able to accommodate constant movement, but it's not as good for structural bonding where stability in size is important.

Curing Characteristics and Safe Drive-Away Time

The operational throughput is directly affected by the speed of curing. Under normal conditions, good polyurethane mixtures fix at a rate of about 3.5 mm per day, leaving surfaces without any tacky residue after 15 to 40 minutes. PU Windshield Auto Glass Sealant follows this same curing behavior, and as a result, Safe Drive-Away Times (SDAT) can be anywhere from 30 minutes to 4 hours with this curing profile, based on the mixture and the surroundings.

Silicone goods usually harden faster on the outside, but it may take longer for the whole length of the bead to reach full mechanical properties. Both systems cure differently depending on the amount of wetness present, so the level of humidity has a big effect on when they can be installed.

Weather and Chemical Resistance

Both types of glue can stand up to high temperatures and water, but they do so in different ways. Polyurethane mixtures keep their bond strength when exposed to UV light without yellowing or breaking down, as long as the surface is properly prepared and UV-protective primers are used on any exposed areas. The material is resistant to cleaning chemicals, weak acids, and automotive fluids that are common in places where cars are serviced.

Silicone is very resistant to environmental degradation because it is naturally resistant to UV light and chemicals. But because it doesn't stick together as well, the seal may break under mechanical stress before the chemical breakdown happens. The material itself is still safe, though.

Cost Considerations for Bulk Procurement

When procurement managers look at the total cost of ownership, they need to think about more than just the price per unit. Because polyurethane is so strong, it's often possible to make bead profiles that are thinner, which means less material is used per installation. The faster SDAT speeds up the change of the bays, which makes the work more efficient. When sourcing between 100,000 and 400,000 RMB a year from 50 to 200 locations, these efficiency gains add up to a lot.

Buying in bulk from companies that let OEMs customize their products adds value by providing branded packaging, consistent quality across production batches, and dedicated technical support for training installers. These things make locations less different from each other, which is very important for keeping the brand's image across all of its activities.

Selecting the Best Sealant for Auto Glass: Decision Criteria for Procurement

Decisions about what to buy should be in line with operational needs and safety regulations. A number of important things affect the choice.

Adhesion Strength and Substrate Compatibility

The chosen adhesive needs to stick well to all the substrates that will be used for installation, such as ceramic-fritted glass, bare metal pinchwelds, e-coated surfaces, and painted frames. Primerless versions make the process easier, but compatibility testing shows that they stick well enough without the need for surface preparation. Primer-needed products add extra steps to the process, but they may last longer on tough substrates.

Regulatory Compliance and Safety Standards

In North America, automotive glass sealants must meet FMVSS 212 standards. In Europe, they must meet ECE R43 standards, and other regions must follow similar rules. These standards require crash tests to make sure the windshield stays in place during both rollover and frontal impacts. PU Windshield Auto Glass Sealant is specifically designed to pass such rigorous crash-test requirements, so bulk sales should come with certification paperwork that protects you legally and guarantees quality.

Supplier Certification and Quality Traceability

Traceability by batch number lets you act quickly if quality problems appear in more than one place. Manufacturers who are ISO-certified have strict quality control procedures that include testing procedures that check each production batch's stickiness, cure rate, and mechanical properties. This makes it easier to keep track of installations on multiple places, which lowers the risk of being sued.

Customization Capabilities for Brand Consistency

Chain processes benefit from OEM packing that has standard usage directions and brand logos. Custom formulations can be made to meet particular performance needs or the weather factors in a certain area. Setting up exclusive supply agreements with makers who can support spread warehousing makes sure that products are always available everywhere.

Practical Guide: Applying PU and Silicone Windshield Sealants

If you use the right application method, the glue will work the way it's supposed to. To get the same results every time, installation teams must stick to set procedures.

Surface Preparation and Cleaning

When bonding fails, contamination is usually the reason. To get rid of oils, release agents, and other environmental contaminants, all bonding surfaces need to be cleaned with the right solvents. To help chemicals stick to glass surfaces that have ceramic frit on them, a primer must be used. In addition to chemical bonding, scratching can help metal pinchwelds fit together mechanically.

Bead Application and Profile Control

The shape of the sticky beads changes both how strong they are and how they look. A triangular cross-section spreads the weight evenly and lets extra material shrink while the glass is being installed without leaving gaps. Products that don't sag keep their bead shape on vertical surfaces, which stops the uneven spreading that leads to noise from the wind and water leaks. Formulations that are ready to use come in 300ml and 600ml cartridges. They can be used with standard pneumatic and manual application guns, which helps keep things running smoothly in a variety of bay configurations.

Environmental Conditions and Cure Management

Temperature and humidity during application change how fast something cures and what its final properties are. If you want to install polyurethane when it's below 10°C or above 35°C, you have to change the SDAT formulas to make sure that the material gets strong enough before the car moves. Adhesives take longer to dry in places with low humidity, and some formulas can foam on the surface when there is too much dampness. These factors don't matter in climate-controlled bays, but mobile service operations have to change their processes based on the weather outside.

Quality Control and Inspection

A visual check shows that the beads are being applied continuously, with no gaps or air pockets. The bead should have the same color and consistency all the way through. Testing for adhesion on fake samples is an objective way to make sure that the steps for preparing the surface and mixing it meet the requirements. By writing down installation details, you can make records that can be used to connect individual installations to batch numbers and technician certifications.

Industry Insights and Emerging Trends in Auto Glass Sealants

The market for automotive adhesives is always changing because of new technologies and government rules. Several trends affect how companies buy things.

Low-VOC and Environmentally Conscious Formulations

Formulations are changing all over the business because of rules about volatile organic compound pollution. Modern polyurethane adhesives meet performance goals while minimizing solvent content. This lowers exposure in the workplace and has less of an effect on the environment. PU Windshield Auto Glass Sealant exemplifies this trend, as its low-VOC formula is in line with green building standards and business sustainability efforts, and it doesn't hurt adhesion or durability.

Integration with Advanced Driver Assistance Systems

More and more, windshields have sensors, cameras, and antennas that help avoid collisions and allow cars to drive themselves. Non-conductive adhesives keep signals from getting messed up and get rid of the risk of galvanic corrosion on aluminum body structures. As more and more technologies come out, electromagnetic compatibility standards must be included in procurement specs.

Increased Modulus for Structural Performance

Electric cars and building designs that use lighter materials put more structural demands on glass glue. High-modulus versions recover suspension rigidity that was lost when weight was cut, which makes the vehicle easier to handle and safer in a crash. These goods need to be applied carefully so that stress doesn't build up, but they do improve performance in a way that can be measured.

Chain operators that sell high-end and electric vehicles should look at high-modulus choices to meet maker requirements and stay competitive. As the products available get more specialized, technical training becomes more important.

Conclusion

When it comes to car windshield uses, polyurethane adhesives are better at structural bonding than silicone options. The chemical bonding process, mechanical strength, and safety compliance of polyurethane formulas make them the standard for replacing car glass. Silicone is still more flexible and resistant to weather damage than polyurethane for non-structural uses, but polyurethane is better at carrying weight.

PU Windshield Auto Glass Sealant is a prime example of such performance-driven polyurethane products, and along with product specifications, decisions about what to buy should focus on the supplier's certification, the ability to track batches, and their technical support. Building partnerships with manufacturers that offer customization, distributed warehousing, and installer training support gives businesses with multiple locations that manage standard installation protocols a competitive edge.

FAQ

How do curing speeds differ between polyurethane and silicone windshield sealants?

Polyurethane sealants usually dry at a rate of about 3.5 mm per day and leave surfaces without any tackiness within 15 to 40 minutes. Depending on the formulation, Safe Drive-Away Times can be anywhere from 30 minutes to several hours. Silicone sealants often dry faster, but they may need the same amount of time or more to fully develop their mechanical properties. Both depend on the availability of moisture, which means that humidity has a big effect on actual cure rates in the field.

Can polyurethane and silicone sealants be used interchangeably?

For structural glass jobs, these kinds of adhesive can't be used together. Polyurethane has the tension and shear strength needed for windshields that help keep the car's structure strong and support airbag activation. Silicone isn't strong enough mechanically for these safety-critical uses. Using silicone when polyurethane is called for puts you at risk of liability and lowers the safety of the crash. Always use the right type of glue based on the manufacturer's instructions and government rules.

What environmental considerations affect sealant selection for automotive chains?

Low-VOC formulations keep performance standards while lowering exposure in the workplace and damage to the environment. Non-conductive versions keep electrical systems built into current windshields from getting messed up. Transportation emissions are cut down by using sustainable packing and making things locally. Buying in bulk from ISO-certified suppliers with documented environmental management systems helps the company reach its sustainability goals and makes sure that the quality of the products is the same across all of its locations.

Partner with Jiaobao for Reliable Auto Glass Solutions

Shandong Jiaobao New Material Co., Ltd. has been making automotive sealants for more than 13 years and is a trusted PU Windshield Auto Glass Sealant supplier for chain operations in many regions. Our ISO and CE certified products meet international quality standards while our OEM customization capabilities enable branded packaging tailored to your specifications. With production lead times of just 1-2 weeks and flexible shipping options, we support efficient procurement cycles for operations managing 50-200 locations. Our quality guarantee includes replacement or refund for any shelf-life defects, minimizing your procurement risk.

Technical support materials and application training resources ensure installation consistency across all your facilities. Contact our procurement specialists at dorashen@cnjiaobao.com to discuss bulk pricing, sample provision, and customized solutions that strengthen your supply chain. Visit shandongjiaobao.com to explore our complete product range and discover how our combination of competitive pricing, rapid delivery, and dedicated service supports your operational excellence.

References

1. Automotive Adhesives and Sealants: Materials, Applications, and Industry Standards, SAE International Technical Paper Series, 2021.

2. Polyurethane Adhesives for Structural Glazing: Performance Characteristics and Testing Protocols, Journal of Adhesion Science and Technology, Vol. 35, 2020.

3. Comparative Analysis of Automotive Glazing Adhesives: Polyurethane vs Silicone Performance Metrics, International Journal of Automotive Engineering, 2022.

4. FMVSS 212 Windshield Mounting Compliance Testing: Methods and Requirements, National Highway Traffic Safety Administration Technical Report, 2019.

5. Advances in Moisture-Cure Polyurethane Formulations for Automotive Applications, Polymer Engineering and Science, Vol. 62, 2023.

6. Supply Chain Management for Automotive Aftermarket Consumables: Quality Assurance and Procurement Best Practices, Automotive Service Association Industry Guide, 2022.
