Why PU Automotive Glass Adhesive Sealant Prevents Windshield Leaks

Poor windscreen seals endanger drivers. PU automotive glass adhesive sealant solves this issue by generating a moisture-triggered, elastomeric binding between glass and the pinch-weld. Instead of shattering under stress, polyurethane chemistry's 2.2 MPa tensile strength and 400% elongation at break allow the bond to flex with the chassis. Its watertight, structurally solid seal withstands temperature fluctuations, road vibration, and UV exposure, making it the ideal option for OEM assembly lines and aftermarket glass replacement.

Understanding PU Automotive Glass Adhesive Sealant

Before you pick one, it's helpful to know what makes polyurethane science different from other window adhesives.

What It Is and How It Cures

Polyurethane window glue is a one-part material that gets stiff when water touches it. This stuff comes in the form of a thick paste. When the air is humid, the cross-linking process begins. This turns the soft bead into a very tough elastomer. In the winter, Jiaobao's formula, which is based on silane-modified polyether resin, can dry in as little as 15–30 minutes. In the summer, it can dry in 25–40 minutes.

How It Differs from Silicone and MS Polymers

Silicone seals don't let you paint, and they can spread oils to nearby surfaces. When it comes to direct-glazing, MS polymers don't always meet the tensile needs of the job. Polyurethane doesn't need a separate primer step to stick to metal frames, painted body panels, and glass. This helps the lines that make a lot of cars do their jobs better.

Why Structural Performance Matters

The Society of Automotive Engineers did a study that found that the windshield makes up to 30% of the torsional stiffness of a modern one-piece car. Over time, a sealer that isn't flexible enough puts stress on the edge of the glass, which makes microcracks form faster. Polyurethane can stretch 400% of its length. This can take the stress off the seal and keep it in place for the life of the car.

Why PU Sealant Outperforms Traditional Solutions for Windshield Installation

There are still a lot of companies that try alternatives to silicone or butyl first and only switch to PU automotive glass adhesive sealant when they run into problems in the field. The performance gap can be found.

Tensile Strength and Flexibility Combined

Most of the time, silicone has a tensile strength of less than 1.5 MPa. Butyl tape doesn't really make the structure stronger. The polyurethane glass sealant from Jiaobao can pull apart 2.2 MPa and is 45 Shore A hard. When hit from the front, it's strong enough to hold the glass in place, but it's also flexible enough to handle cycles of temperature changes from -40 °C to +90 °C.

Faster Assembly Line Compatibility

How much can be made depends on how fast it cures. The material can be used in both robotic glass stations and human replacement bays because it doesn't stick for 15 to 40 minutes and grows about 3.5 mm per day. Many times, rain-test or drive-away clearance can be reached a few hours after the coating is put on. This helps keep production lines going.

Long-Term Resistance to Environmental Stress

UV light, road movements, and temperature changes that happen over and over again break down polyurethane links more slowly. Jiaobao's formula is 99% solid, which means that it doesn't shrink much after it cures. Because of this, gaps don't form around the edges of the glass, which is where most wind noise and water get in.

Less damage claims and rework are directly caused by these performance improvements. This is important because an assembly line that isn't working costs thousands of dollars an hour.

Application Process of PU Automotive Glass Adhesive Sealant

Correct application is just as important as product chemistry. A technically strong sealant will underperform if the surface preparation or bead geometry is wrong.

Surface Preparation

Clean the pinch-weld and glass frit thoroughly with an approved cleaner to remove oil, dust, and any residue from previous sealant when applying PU automotive glass adhesive sealant. Bare metal on the pinch-weld must receive a compatible primer to prevent corrosion and ensure full adhesion. Allow all cleaned surfaces to dry completely before proceeding.

Bead Application and Tooling

Apply the sealant using a cartridge gun (300 ml or 600 ml sausage pack) in a continuous triangular bead around the glass perimeter. The sagging value of Jiaobao's product is 0 mm, meaning the bead holds its cross-section on vertical surfaces without slumping—an important quality control point verified by the ASTM D2202 sag test. Seat the glass within the open time window to guarantee full wet-out contact.

Curing Monitoring and Storage

Monitor ambient temperature and humidity during cure. Higher humidity accelerates the moisture-curing reaction; dry winter air slows it. Store unopened cartridges between 5 °C and 25 °C, away from direct sunlight. The shelf life is 12 months from manufacture date. Inspect packaging integrity before use—polyurethane is moisture-sensitive, and any compromised seal on an aluminum sausage pack can trigger premature skinning inside the cartridge.

Selecting the Right PU Automotive Glass Adhesive Sealant Supplier

Product performance alone does not protect a procurement manager's supply chain. Supplier capability, documentation, and delivery reliability carry equal weight.

Certifications and Quality Documentation

For automotive OEM supply, IATF 16949 certification is a non-negotiable threshold. Suppliers must also provide a complete PPAP document package—design records, material certifications, SPC data, and measurement system analysis—before production parts approval. Without this documentation, the material cannot enter an OEM-qualified supply chain regardless of its technical merits.

Batch Consistency and Delivery Reliability

Assembly line operators cannot absorb viscosity shifts or cure-time variations between batches. Suppliers operating under statistical process control (SPC) protocols maintain PPM-level defect rates and provide batch traceability records. On the logistics side, a reliable polyurethane glass adhesive manufacturer should hold safety stock and offer emergency replenishment to prevent line stoppages.

Evaluating Jiaobao as Your Supplier

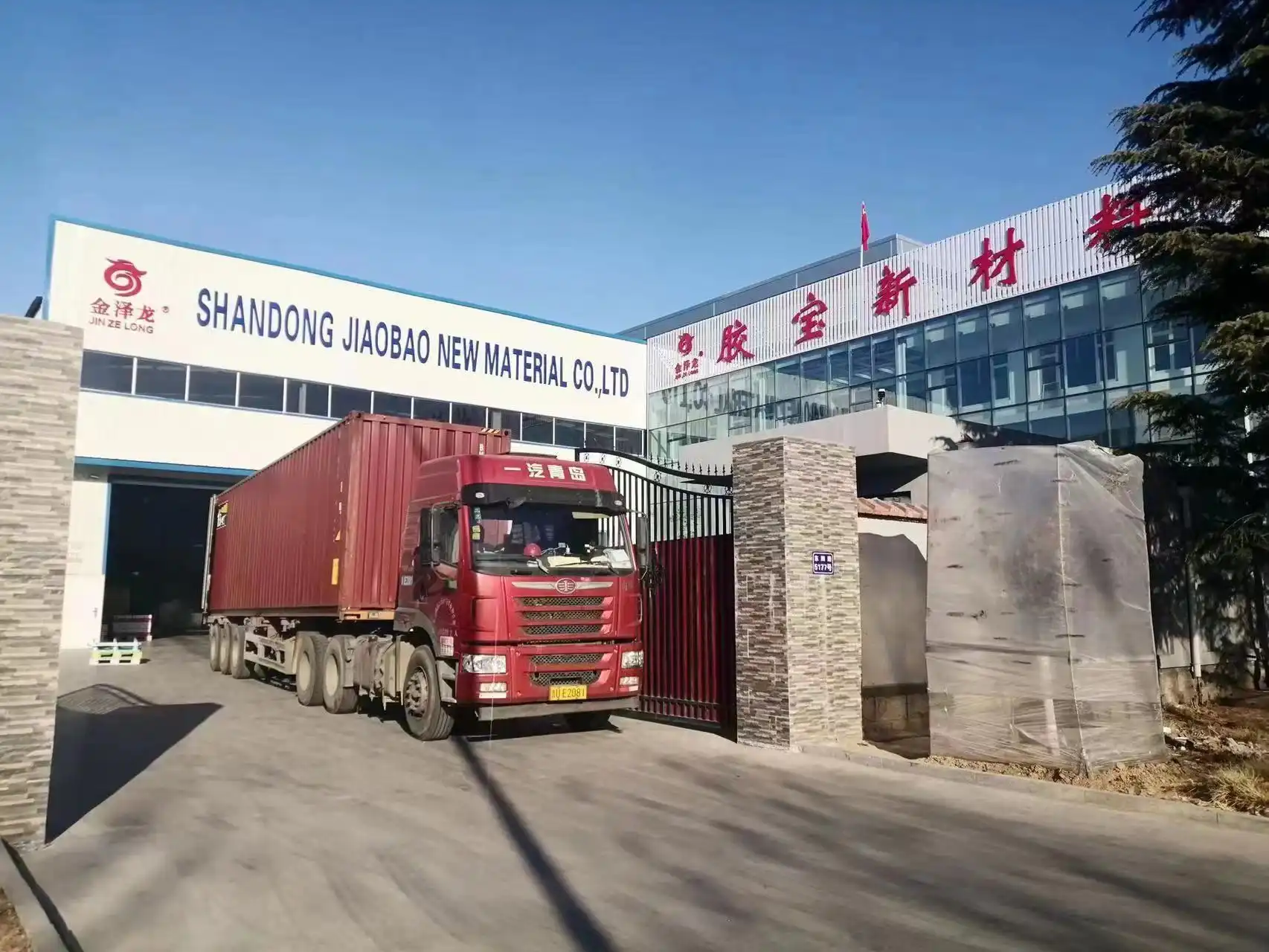

Since 2013, Shandong Jiaobao New Material Co., Ltd. has made sealants. ISO-certified, the firm produces OEM/ODM products to client requirements and delivers worldwide by boat or land in 1–2 weeks. Black, white, grey or custom-colored 300 ml cartridges and 600 ml sausage packs are available.

If quality issues develop throughout shelf life, Jiaobao refunds or replaces. Jiaobao is a reliable supplier of PU automotive glass adhesive sealant, a practical PU automobile glass adhesive sealant for businesses seeking a cost-effective alternative to international products without compromising quality.

Ensuring Leak-Proof Windshields: Challenges and Risk Management

No matter how well you handle or process something, it can still go bad. When the installer and the end user know about the most common ways something can go wrong, they are both safer.

Common Application Pitfalls

Most leaks that happen after installation happen because the surface wasn't cleaned well enough, the beads broke, or the glass moved before the adhesive reached green strength. As the customer sees it, each of these is a problem with the way the sealant is used, not with the sealer itself.

Safety and Compliance Protocols

Nitrile gloves should be worn by people who use polyurethane seals, and they should work in places with good air flow. Jiaobao's silane-modified recipe doesn't have any isocyanates or PVC in it, but you still shouldn't touch material that hasn't been fixed. When getting rid of empty cartridges, you must follow the local rules for getting rid of glue trash.

After-Sales Support and Warranty Management

Manufacturers and aftermarket buyers of goods should write down batch numbers when putting items to make it easier to track guaranties. When someone says there is a leak, the root cause study generally shows that the surface preparation was not done well enough instead of the glue chemistry. If a supplier gives customers technical application help along with product info sheets, they can solve these issues faster and with more trust.

Conclusion

Using the correct glue and techniques may prevent windscreen leaks. PU automotive glass adhesive sealant is a polyurethane glue with stronger, more flexible molecules and better stability in hostile settings than silicone and butyl equivalents. Its moisture-cure profile makes it ideal for automakers and glass repair technicians. Stretchable 400%, its bond strength is 2.2 MPa. In high-stakes production environments, vendors with certificates, batch-level documentation, and trustworthy logistics complete the picture for procurement teams.

FAQ

How long does a polyurethane windshield adhesive take to cure fully?

Full mechanical cure typically requires 24–72 hours depending on temperature and humidity. Safe drive-away time—the point at which the bond is strong enough for normal road use—is usually reached within 1–4 hours under standard conditions (23 °C, 50% relative humidity).

Can this sealant bond different types of automotive glass?

Yes. The silane-modified polyether formula adheres to laminated windshields, tempered rear glass, and sidelights. It bonds to ceramic frit-printed edges and direct-to-metal pinch-weld surfaces without requiring a dedicated glass primer in most applications.

What storage conditions protect the sealant's shelf life?

Store cartridges and sausage packs at 5 °C–25 °C in a dry location away from heat sources. The shelf life is 12 months from the production date when stored correctly. Always inspect packaging integrity before use; a damaged aluminum sausage can expose the material to moisture.

Is the product compatible with automated dispensing equipment?

Yes. The sealant's thixotropic rheology and controlled viscosity make it compatible with pneumatic cartridge guns and drum-pump robotic dispensing systems used on OEM assembly lines.

Does the product meet IATF 16949 supply chain requirements?

Jiaobao manufactures under ISO-certified quality management processes and can provide supporting documentation. Buyers pursuing full IATF 16949 approval should contact Jiaobao directly to request the applicable quality records and PPAP documentation package.

Partner with Jiaobao for Dependable Windshield Bonding Solutions

For hiring teams that want to work with a reliable company that makes PU automotive glass adhesive sealant, Shandong Jiaobao New Material Co., Ltd. is a good choice. The wait time is one to two weeks, and the company has been making things for thirteen years. They are ISO approved and can do OEM/ODM. Their prices are fair for the good items they sell. Now is the time to get product samples or bulk pricing. Go to shandongjiaobao.com or email dorashen@cnjiaobao.com. Our tech team can help you figure out which formula will work best for your factory.

References

1. Automotive Engineering Society. Automotive Windscreen Urethane Adhesives, SAE International, 2021.

2. ASTM International. ASTM C794: Elastomeric Joint Sealant Adhesion-in-Peel Standard Test Method. ASTM International, 2018.

3. ASTM International. Sealant Slump Test Method D2202. ASTM International, 2017.

4. NHTSA. FMVSS 212: Windscreen Mounting. USDOT, 2020.

5. Edward M. Petrie Handbook of Adhesives and Sealants. McGraw-Hill, 2007.

6. Philippe Cognard. Adhesives and Interface Preparation: Technology, Applications, and Manufacturing Handbook. Elsevier, 2006.
