What Makes PU Auto Glass Sealant High Strength for Lasting Repairs?

When procurement teams and quality engineers evaluate structural bonding materials for automotive glass, one question consistently rises to the top: what actually makes a PU auto glass sealant high strength capable of delivering lasting, safety-critical performance? The answer lies in a combination of polyurethane chemistry, mechanical specifications, and manufacturing consistency. A qualified structural adhesive must deliver tensile strength of at least 2.2 MPa, elongation at break above 400%, and zero sagging during application — all while meeting IATF 16949 and ECE R43 compliance requirements. These properties together determine whether a windshield stays in place during a collision or fails at the worst possible moment.

Understanding PU Auto Glass Sealant High Strength

Chemical Composition and Polymer Architecture

This kind of sealant is made from a silane-modified polyether base that only has one part and cures when it comes into contact with water in the air. This formula is different from other adhesives because it makes an elastomeric bond between metal and glass that can handle twisting stress without breaking over time. The solid content hits about 99%, which means that the material won't shrink much after drying. This directly helps with maintaining accurate measurements on the assembly line.

Key Mechanical Specifications

The product has a Shore A hardness of about 45, a tensile strength of about 2.2 MPa, and an elongation at break of about 400%. These numbers are in line with what FMVSS 212 and ECE R43 test protocols say about structural bonding for windshield retention. The sealant has 0 mm of sagging, which means that the extruded bead keeps its shape and doesn't fall over during installation, even on the edges of vertical glass.

Curing Behavior and Tack-Free Times

Under normal conditions, the speed of curing of PU auto glass sealant high strength hits about 3.5 mm per day. In the summer, the tack-free time is between 25 and 40 minutes. In the winter, it's only 15 to 30 minutes. This difference is important on assembly lines for cars, where temperature-controlled areas affect how fast things get done. Instead of just using product datasheets, procurement engineers should ask for third-party curing data.

Advantages and Performance Benefits

Structural Durability Across Environmental Conditions

A strong polyurethane windshield sealant must be able to withstand UV light, changes in temperature, and constant road vibrations without losing its stickiness. This recipe keeps the bond strong even when temperatures are very high or very low. This is especially important for cars that are sold in North America and Europe, where thermal cycles are harsh. Studies from the SAE International magazine show that the ability of an adhesive bond to hold up over time is largely determined by how well it handles thermal stress.

Comparison with Silicone and MS Polymer Alternatives

Polyurethane, silicone, and MS polymer seals are all things that contractors argue about. Silicone is very flexible, but it doesn't have the structural modulus needed to keep the windshield in place during a crash. MS polymer sealants work well for general building sealing, but they might not meet the specific standards for car glass bonding that OEM production lines need. In safety-critical situations, polyurethane structural glue is the only one that can match its balance of hardness and elongation.

Low-VOC Profile and Worker Safety

The one-component formulation doesn't need to be mixed, and when it's used, it only makes small amounts of volatile organic compounds. This helps make sure that workers are safe in protected assembly areas and is in line with OSHA rules for exposure at work in factories. The product comes in 300 ml cartridges and 600 ml sausage packs, and it can be used with both hand application tools and automatic dispensing equipment.

Application Guide and Best Practices

Surface Preparation Requirements

Before the sealant even touches the glass, it needs to be fully cured. The base must be clean, dry, and free of oil or release agents. It can be glass frit, electrophoretic painted metal, or a bare flange. For pinchweld surfaces, it is best to use a cleaning agent first, then a black filler that works with the surface. This is especially true if UV light is likely to hit the bond line. One of the most common reasons peels fail during receiving quality checks is that this step is skipped.

Dispensing Technique and Bead Geometry

For full contact with the glass edge and the pinchweld surface, the sealant should be put on in a continuous, triangular bead. Gaps or air gaps in the bead make the bond area smaller and the tension performance worse. The nozzle diameter and travel speed should be set so that the bead thickness is the same across all production units, whether the paint is applied by hand gun or an automatic robot. This measure works because the viscosity stays the same from batch to batch.

Curing Conditions and Safe Handling Time

As soon as the glass is in place, the unit shouldn't be touched until the PU auto glass sealant high strength is strong enough to handle. The material is strong enough to work with at 23°C and 50% relative humidity. This is within the tack-free window that was given. Curing takes longer in places with less humidity, so production lines that work in dry climates should plan for this when they schedule operations further down the line. Within the first 24 hours, do not wash newly bonded assemblies with water.

Procurement Considerations for B2B Buyers

Supplier Qualification and Certification Requirements

The people who buy cars follow a set method for approving suppliers. It includes initial screening, sample submission, third-party testing, review of PPAP paperwork, and plant audit. At the very least, a seller must have ISO and CE certifications. For Tier 1 and Tier 2 supply chains, IATF 16949 alignment is recommended. Before the supplier is onboarded, all technical documentation must be available. This includes TDS, SDS, and PPAP file packages.

When purchasing teams look at structural glue sources, these are the main things they look at:

The batch consistency paperwork includes PPAP-level process control data that shows the results of tensile strength and elongation tests for all production lots. This shows that not a single batch deviates from the approved standard.

• Batch consistency documentation: PPAP-level process control data showing tensile strength and elongation test results across production lots, confirming that no single batch deviates from the approved specification.
• Lead time and supply chain reliability: Automotive lines cannot tolerate material shortages. A 1–2 week production lead time with confirmed stock capacity for blanket orders reduces the risk of line stoppage, which can cost tens of thousands of dollars per hour.
• OEM/ODM customization support: Suppliers who can adjust viscosity, color, and packaging format to match line-specific requirements reduce the engineering burden on the buyer's side and speed up the PPAP approval cycle.

These criteria help procurement directors avoid the two worst things that can happen in automotive glass bonding: a failure in the field that can be traced back to the PU auto glass sealant high strength not working right and a supply disruption that stops production. When you work with a provider that checks all three boxes, the qualification process goes faster than usual, from 8 to 16 weeks.

After-Sales Support and Technical Collaboration

Strong support after the sale means more than just replacing broken items. Applications engineers are part of it, and they can help with line trials, handle IQC holds, and figure out why bonds malfunction during testing. This amount of technical cooperation is normal in relationships between suppliers and automakers, and it should be proven during the first supplier evaluation.

Future Trends in Automotive Glass Bonding

Faster Cure Formulations for High-Speed Lines

OEM assembly lines want structure sealants that are strong enough to handle within 30 to 60 minutes of being applied. So, formulators are coming up with moisture-accelerated systems and pre-applied primer technologies that cut down on the number of steps needed to make the bond stronger without lowering the bond strength. This trend has a direct effect on SDAT (Safe Drive-Away Time) standards for replacing glass after the fact.

Compatibility with Smart Glazing and ADAS Sensors

Rain sensors, camera clips, heads-up display finishes, and ADAS calibration targets are all built into modern windshields. When you bond things together, the glue you use must not carry electricity and be neutral visually near sensor zones. To keep radar and camera systems inside the glass unit from getting messed up, polyurethanes with low ionic content are recommended.

Sustainable Chemistry and Reduced Environmental Impact

Sealant makers are moving toward bio-based polyols and solvent-free formulas because of rules in the EU and California. Moving toward goods with about 99% solid material, like this silane-modified polyether system, is exactly what the industry is doing. This means less trash, lower emissions, and easier disposal needs.

Conclusion

How well an automotive glass bond works depends on how well material science, manufacturing discipline, and supplier consistency all work together. A one-part silane-modified polyether glue with a tensile strength of about 2.2 MPa, an extension of about 400%, and no sag gives the structural performance needed for installing a windshield. When purchasing PU auto glass sealant high strength on a large scale, procurement professionals must choose a manufacturer with documented batch consistency, full certification coverage, and responsive technical support. This is the only way to ensure production continuity and end-user safety.

FAQ

Does this type of sealant require a primer before application?

For production environments following OEM standards, a cleaning activator and dedicated black primer are recommended when bonding to ceramic frit or a scratched pinchweld surface. Some modern formulations are primerless to bare glass, but primer use generally ensures bond line protection against UV degradation over the vehicle's service life.

What is the shelf life, and how should the product be stored?

The shelf life is 12 months from the production date when stored in a cool, dry location between 5°C and 25°C. Exposure to moisture or heat above the recommended range will accelerate moisture-triggered curing inside the cartridge, rendering the product unusable before the expiration date.

What packaging formats are available for production line use?

The product is available in 300 ml cartridges and 600 ml sausage packs. Both formats are compatible with standard pneumatic dispensing guns. The sausage format is generally preferred for high-volume production lines due to reduced material changeover frequency and lower packaging waste per unit of sealant applied.

Can the color be customized for specific application requirements?

Yes. The product is available in black, white, and grey as standard options. Custom colors are available through OEM/ODM arrangements, which is useful when the sealant bead is visible in the finished assembly and must match interior or exterior trim specifications.

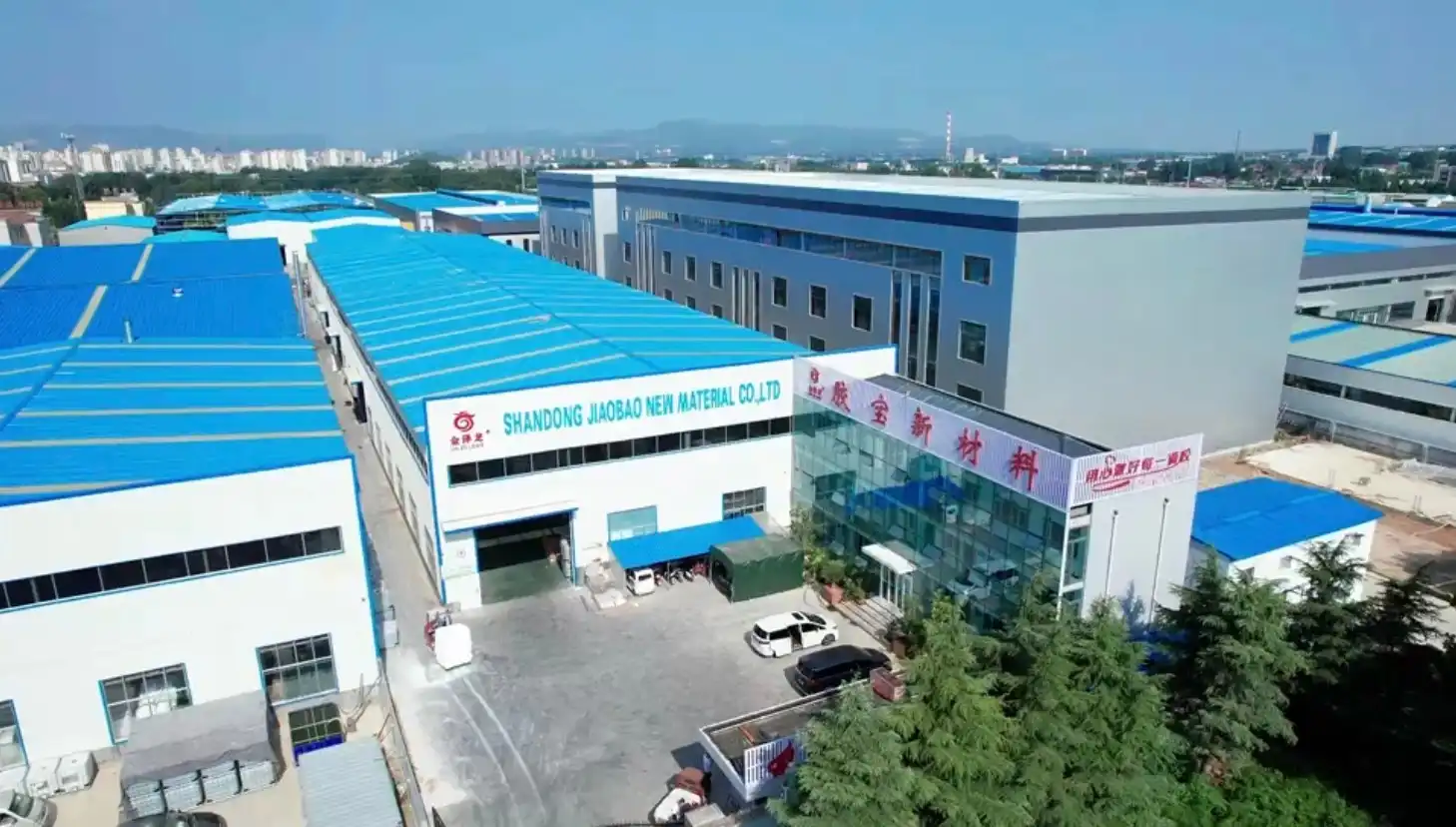

Partner with Jiaobao — Your Trusted PU Auto Glass Sealant Supplier

Since 2013, Jiaobao has been making professional-grade structural sealants. They have ISO and CE certifications, a production lead time of one to two weeks, and they can do both OEM and ODM work. The tension and stretch standards your quality team needs can be met by our one-component, silane-modified polyether structural sealant. Today, ask for samples, PPAP paperwork, or a price on buying in bulk. To start the process of becoming a supplier, email us at dorashen@cnjiaobao.com.

References

1. SAE International Journal of Materials and Manufacturing — Adhesive Bond Durability in Automotive Glazing Under Thermal Fatigue Cycles, 2021.

2. ASTM International — ASTM C794: Standard Test Method for Adhesion-in-Peel of Elastomeric Joint Sealants, 2018.

3. Polymer Engineering & Science — Mechanical Performance of Silane-Modified Polyether Sealants in Structural Bonding Applications, 2020.

4. National Highway Traffic Safety Administration (NHTSA) — FMVSS 212: Windshield Mounting Federal Motor Vehicle Safety Standard, 2019.

5. United Nations Economic Commission for Europe — ECE Regulation No. 43: Uniform Provisions Concerning the Approval of Safety Glazing Materials, 2022.

6. International Journal of Adhesion and Adhesives — Polyurethane Structural Adhesives in Automotive Glass Assembly: Cure Kinetics and Modulus Development, 2022.
