Best GP Silicone Sealant for Glass and Aluminum: Buying Guide

Choosing the right GP silicone sealant for glass and aluminum is one of the most consequential decisions a procurement engineer or production manager can make. A poor choice leads to seal failures, foggy insulating glass units, and costly rework. This guide cuts through the noise, covering what actually matters: adhesion strength, cure chemistry, compatibility with IG unit components, and how to verify batch consistency before committing to a supplier. Whether you fabricate curtain wall panels, aluminum window systems, or laminated glass products, the information below will help you buy smarter.

Understanding GP Silicone Sealant for Glass and Aluminum

A general-purpose (GP) RTV silicone sealant gets hard at room temperature when it comes in touch with water in the air. It's a single-part rubber. There are things that can break down acrylic or polyurethane seals, like UV light, ozone, or big changes in temperature. However, silicone rubber seals do not. These traits have a direct effect on how well glass systems close in the long run.

What Separates GP Silicone from Other Sealant Types

More than 300% of its length can be stretched before it breaks. The cured bead doesn't break when the aluminum frames get bigger in the summer. Instead, it stretches. A lot of plastic locks can only go out 100 to 150 percent of their length. When two parts of a joint are very different temperatures, they are easy to break.

Acetoxy vs. Neutral Cure: Which Is Right for Aluminum?

When acetoxy-cure GP silicone is vulcanized, it gives off acetic acid. This works great if the aluminum has been anodized or powder-coated. But it can damage aluminum shapes that are mill-finished or haven't been handled, and it can eat away at close copper or brass parts. Neutral-cure types are better for working with bare metal or surfaces that are easily damaged because they are not chemically as strong.

Core Technical Properties to Verify Before Buying

For GP silicone sealant for glass and aluminum, a glass-to-aluminum ring seal shouldn't stick for 10 to 20 minutes at 23 °C/50% RH. It should also have a Shore A hardness of 15 to 25 on the Mohs scale, a tensile strength of at least 1 MPa, and be able to work at temperatures between -40 °C and +150 °C. This is a correct number based on ISO 11600 Class 20LM.

How to Use GP Silicone Sealant on Glass and Aluminum Correctly

Application technique matters as much as product specification. Even a high-grade sealant will fail prematurely if the substrate is contaminated or the bead geometry is wrong.

Surface Preparation: The Two-Cloth Method

Clean aluminum and glass surfaces using the two-cloth method: wipe with an IPA-soaked cloth, then immediately wipe with a dry cloth before the solvent evaporates. If the solvent dries on its own, dissolved contaminants are re-deposited onto the surface. This single step accounts for the majority of adhesion failures in production environments.

Application Conditions and Bead Geometry

Apply sealant when ambient temperature falls between 5 °C and 40 °C. Maintain a minimum joint depth of 6 mm and a width-to-depth ratio of 2:1 to allow the bead to flex without tearing. Use a consistent-diameter cartridge tip and a steady gun speed to avoid voids or air pockets in the bead.

Curing Time and Handling

At standard conditions (23 °C, 50% RH), tack-free time is typically 15 minutes, but full mechanical strength develops over 24–72 hours. Do not stress the joint within the first 24 hours. In cold or dry conditions, curing slows significantly — factor this into production scheduling to avoid premature handling.

Comparing GP Silicone Sealant to Other Sealants for Glass and Aluminum

Buying groups often ask if a hybrid or acrylic sealant that costs less can be used in place of silicone in glass systems. That's a quick answer. For every job, it's different. On the other hand, silicone is almost always the best choice for making metal windows and curtain walls.

Silicone vs. Acrylic Sealant

You can paint over acrylic sealants, which are water-based, so you can use them on trim inside. They do soak up water, shrink when the water is gone, and break down quickly in UV light, though. Based on ASTM C920 accelerated weathering data, an acrylic seal for outdoor glazing should be changed every 5 to 7 years. On the other hand, GP silicone sealant for glass and aluminum can last twenty years or more.

Silicone vs. Polyurethane Sealant

Polyurethane seals stick well to both concrete and wood, even though they are both porous. If they are in UV light for a long time, though, they will chalk up and get hard. Also, when they are being used, they need to be closely watched. When UV light needs to be blocked and the system needs to stay flexible over time, silicone works better than polyurethane. It is important to remember this when building a curtain wall because the frames move with the seasons.

Total Cost of Ownership

Because it costs more per cylinder at first, some people don't always pick good silicone. But a good sealer that always does its job is worth a lot more than it costs. This is because a bad seal costs a lot, like when you have to replace the glass, do the work to make it work again, or file a warranty claim.

Procuring GP Silicone Sealant: Best Practices for B2B Buyers

A lot of teams that buy things don't know how much technical risk there is in where they buy sealer. There is a planned way to lower that risk.

Run an Adhesion-in-Peel Test Before Approving a Supplier

Get some examples and make sure they pass the ASTM C794 peel test on the anodized, powder-coated, or mill finish aluminum base that you want to use. Only then should you place a bulk order. It's likely that the glue didn't work because the sealing body tore apart instead of sticking together. Things that aren't very good or are made with a lot of oil will fail this test.

Check Batch-to-Batch Consistency

To save money and make low-grade GP silicone last longer, it is often mixed with oil. The bead shrinks and pulls away from the glass or aluminum base as the oil leaks out. It's standard for the mold to lose less than 5% of its weight while it cured. Also, make sure that each batch has the same tack-free time. What went wrong? It's possible that the raw materials aren't right or that the product went bad while it was being kept.

Evaluate Supplier Capabilities for Custom Formulation

If a factory can do both OEM and ODM, it's very helpful for production lines that need to meet standards for materials used or work time. If your automatic filling machine needs it, you can change the skin-over time, extrusion rate, or Shore hardness. This will keep things moving along and stop waste from happening.

Why Choose Jiaobao GP Silicone Sealant for Glass and Aluminum

Jiaobao New Material Co., Ltd. has been in business since 2013 and makes a lot of different types of RTV silicone covers for metal and glass parts. GP silicone sealant for glass and aluminum is one-part and acetoxy-curing, available in custom colors. It comes in 600 ml sausage packs and 350 ml cylinders.

This item is good for making parts out of metal and glass because of the following:

• Tack-free time of 15 minutes at 23 °C/50% RH — supporting rapid workshop handling without sacrificing seal quality.
• Maximum bond strength of 1.5 MPa — meeting the dual-substrate adhesion requirement for both glass and aluminum surfaces in a single formulation.
• Tensile rate exceeding 300% — providing sufficient elongation to accommodate thermal expansion in aluminum framing systems without cohesive failure.
• Service temperature range of −50 °C to +150 °C — suitable for export markets with extreme climate conditions, including Middle East heat and northern European winters.

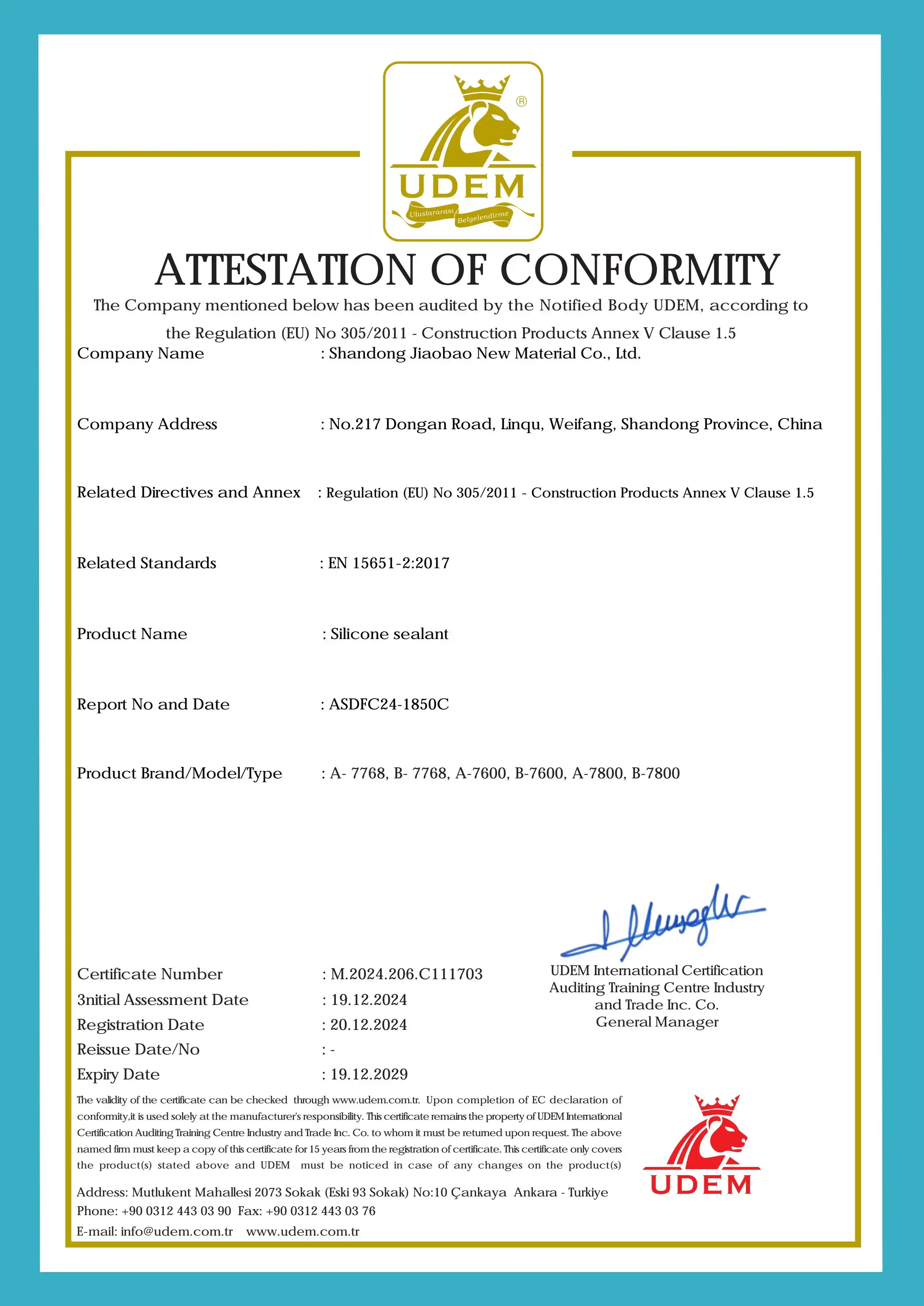

• 12-month shelf life with ISO and CE certifications — ensuring batch-to-batch consistency across long supply cycles.

• ​





Conclusion

Selecting a GP silicone sealant for glass and aluminum comes down to four verifiable factors: adhesion strength on your specific substrate, elongation capacity relative to your joint geometry, batch consistency across production runs, and supplier capability to adjust formulation when your process requires it. Acrylic and polyurethane alternatives rarely match silicone's long-term performance in outdoor glazing. For fabricators who need a sealant that performs consistently at scale, working with an experienced manufacturer with documented test data and OEM capability is the most practical path forward.

FAQ

Can acetoxy GP silicone be used directly on untreated aluminum?

Acryl silicone does make acetic acid when it hardens, yes. This acid can damage metal that isn't finished or has a mill finish. A neutral-cure mix should be used to join aluminum profiles that have not been treated.

Is GP silicone sealant paintable?

Rubber doesn't let paint stick to it. You can paint the metal frame first and then seal it, or you can use a mixed polymer finish instead. Most GP rubber shouldn't have a lot of coating on it.

What causes a silicone seal to pull away from glass after a few months?

Most of the time, this means that oil has been added to the item. The bead gets smaller as the hydrocarbon filler leaks out, and force builds up at the bond line. Before giving a provider the go-ahead, make sure that the loss is less than 5%.

How long does a GP silicone seal last on an exterior aluminum window?

Good rubber seals that meet ASTM C920 or ISO 11600 standards can last at least 20 years on the outside. The joints, the surface, and the amount of UV light that hits them can all tell you how long something will last.

Can this sealant be used in insulating glass unit (IGU) production?

GP silicone, which feels like rubber, works well as an extra seal around the edges of IGU joints. Before you start making it, make sure it works with your main butyl seal and desiccant (molecular sieve).

Partner with Jiaobao for Your Next GP Silicone Sealant Order

Companies that make joints between metal and glass have been able to get silicone seals from Jiaobao that meet certain standards since 2013. In our own plant, we make GP silicone sealant for glass and aluminum. Lead times are one to two weeks, and you can be sure of the quality for a whole year. Aside from that, we also offer OEM/ODM process changes. Send an email to dorashen@cnjiaobao.com telling them what you need and how much of it you need.

References

1. ASTM International. ASTM C920: Standard Specification for Elastomeric Joint Sealants. ASTM International, 2022.

2. ISO. ISO 11600: Building Construction — Jointing Products — Classification and Requirements for Sealants. International Organization for Standardization, 2022.

3. ASTM International. ASTM C794: Standard Test Method for Adhesion-in-Peel of Elastomeric Joint Sealants. ASTM International, 2018.

4. Petrie, Edward M. Handbook of Adhesives and Sealants. McGraw-Hill, 2007.

5. Wolf, Andreas T. "Durability of Silicone Sealants." International Journal of Adhesion and Adhesives, Elsevier, 2010.

6. Glass Processing Days Conference Proceedings: Sealant Performance in Insulating Glass Units. Glass Performance Days, 2019.
